Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
Specifications
Brand Name :
SINOMATIC
Model Number :
PD-232
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
US$20~24
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1,0000 pcs per month
Delivery Time :
2-5 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Supply Voltage :
220V/110V/24V/12V
Loop quantity :
2
Operating temperature :
-20°C to +70°C
Storage temperature :
-40°C to +80°C
Dimension :
78x40x108 mm (L x W x H)
Frequency range :
20KHz ~ 170KHz
Description

Advanced Microprocessor Technology 10ms Fast Reaction Time Safe-Guarding Access Vehicle Loop Detector

PRODUCT INTRODUCTION

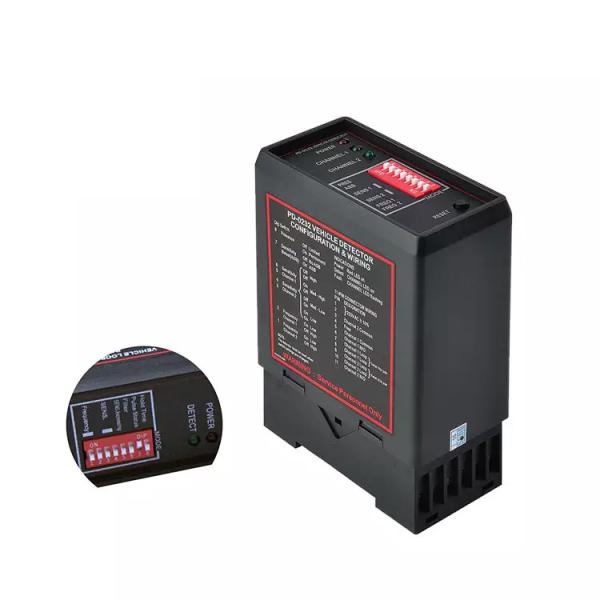

The PD-232 is a double channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.

Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time

Application Scope:

Parking lot entrance vehicle detection;

Pakring lot space information acquisition system

Electronic police traffic lights snap shot system

Traffic monitoring system

Main Features:

Double coil model can realize vehicle driving direction detection

High temperature stability

Cail automatic fault detection function

Can be used with barrier gates realize anti hit a car function

Can be used with the barrier gates realize car go automatic swithc-off function

PRODUCT SPECIFICATIONS

Model Number
PD-232
voltage
different voltage available
Reaction Time
10ms
channels
Double loop detector
Storage temperature
-40°C to +85°C
Frequency range
20 kHz to 170 kHz
Sensitivity
Adjustable in 4 increments
Dimension
78x40x108 mm (L x W x H)
Signal holding time
Unlimited / limited when loop is permanently covered 10 minutes
Loop inductance
Ideal is 100μH to 300μH
Loop connection wiring
Maximum length 20 meters
Keywords
Loop Detectors, vehicle loop detectors, loop sensors, vehicle sensors,car parking sensors, car park detectors
Application & Advantages
Loop detector is used in vehicle access control areas to keep the barrier gate opening until the vehicle leaves the covering area.
Delivery Time
Sample:3 working days;Bulk orders: 5 to 7 days;
Our other products
other products as: tripod turnstiles, UHF readers,sliding gate motor, swing gate motor, garage door opener,pedestrian access control turnstiles and barriers,and other related accessories

Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time

PRODUCT FEATURES

1)Reset Switch:The reset switch enables the detector to be manually reset during registering and testing and it is a process of system recovery


2)Selectable Pulse Time:This feature sets the length of time that the pulse relay will be lasting for 1S or 0.5 Seconds


3)Pulse Relay Selection:The Pulse Relay may be configured to activate on detection of a vehicle or when the vehicle leaves the loop


4)Sensitivity Reinforcement:This feature sets the un-detecting level to a maximum sensitivity to prevent failing to detect vehicles as big trucks


5)Switch Sensibility Adjustable:4 sensitivity setting are available on the switches to change sensitivity


6)Switch Frequency Adjustable:4 frequency settings are available to prevent signal interference with neighboring loops


7)Filtering Option:This option is used to provide a delay between detection of the vehicle and switching of the output relay. This relay is normally used to prevent false detection of small or fast moving objects


8)Permanent Presence Option:This feature ensures the detection of the vehicle will be maintained when the vehicle stays within the loop area for extended periods
