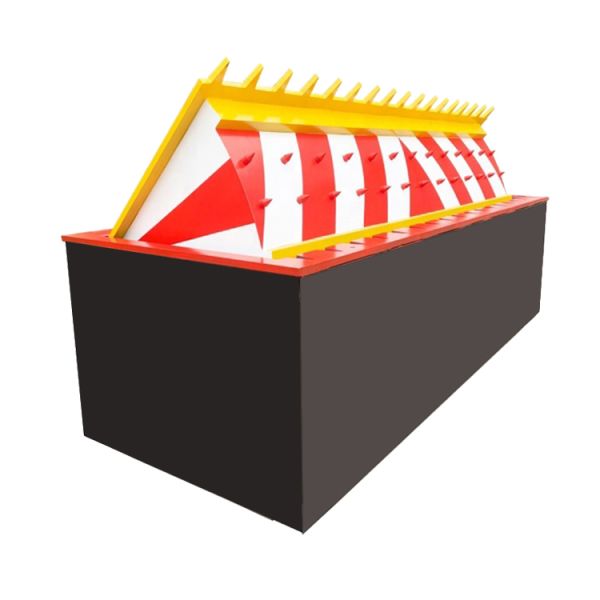

High-security anti-terrorist obstacles wedge barrier width from 2 to 6 m

Road Blockers are heavy duty and anti-terrorist barriers that are installed at high-sensitive areas where unauthorized

vehicle have strict restrictions for access. They are installed with an intention to block the roadways for vehicle passage

and to obstruct the vehicle based attacks.

The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government

agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking

lots, and all places where vehicle traffic is restricted. The user sends instructions through the control system, and the

hydraulic transmission enables the roadblock device to quickly descend. After the vehicle passes, the roadblock is automatically

lifted or the manual button operation;

The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability,

simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable,

strong carrying capacity and stable lifting.

The Hydraulic Road Blocker can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)

Our advantage

• In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the obstacle to be lowered from a remote location OR to be raised and lowered (manual pump) OR an uninterrupted operation (UPS)
• The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
• Finishing: the obstacle is anthracite color painted covered by a non-slip metal or stainless steel sheet. The metal skirt color is also optional
• Activation: The hydraulic pump and the control unit are housed in a cabinet which could be up to 30m remote.

PRODUCT SPECIFICATIONS

MAIN FEATURES

1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,

the language is customized).

2, power supply voltage: 380V (control voltage 24V).

3. System Power: 3.7KW

4, pressure capacity: Max. 120 tons of container trucks.

5, Anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)

6, protection level: IP68 (dustproof, waterproof)

7, open time: 3~6S (adjustable).

8, closing time: 3~6S (adjustable).

9, communication: RS485 ≤ 1200M.

10, the degree of elevation: 450mm-800mm.

11, working temperature: -45 ° C --- 75 ° C.

12, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.

13. Can be manually raised and fall down if power cut.

14. Gang-control interface

15. Reliable structure, heavy duty load, smooth action, low noise.

16. In rising and falling, reversible operation is available .

17. Hydraulic drive comes with hydraulic lock

18. PLC programming command control system

19. LCD display ,Both Chinese and English menu.

20. PLC built-in encryption system

21. Double dynamic double oil pump 2.3ML/time

22. Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

23. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down

24. Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems

25. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control

26.Advanced mature Hydraulic pressure technologies

27.Remote control system realize wireless control up &down within 100 meters range

28.Customized for different users requests

29.Controller display : LCD and LED

30.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card

31.Connected with Computer Management OR Charging Systems
