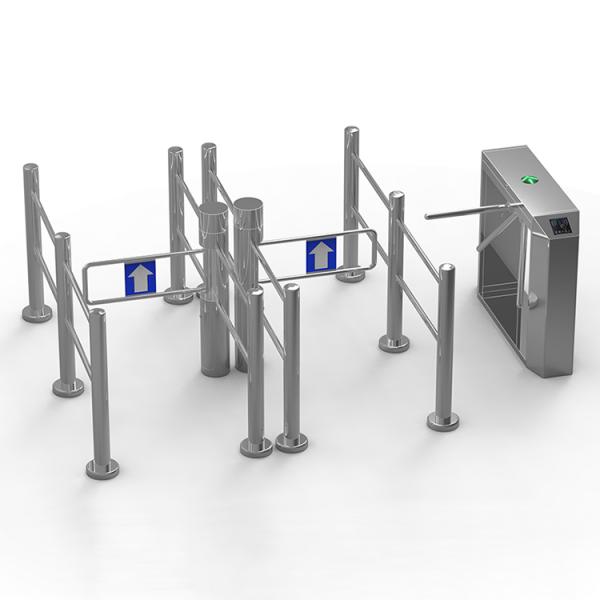

Automatic Pedestrian Waist High 304 Stainless Steel Security Swing Barrier Gate

PRODUCT DESCRIPTION

• SN-SB01 is the minimum optical swing barrier gate, single working, lower air freight cost for sample order,

with LED indicator for access, and optical swing can be extended according to project requirement.

• The swing barrier gate is an intelligent control device for the entrance and exit of the pedestrian passage.
• The swing barrier gate is a part of the entrance management system, combined with computer and access

control system, attendance system, ticketing system, which can realize various of functions for different scope.

Advantage of swing gate is the channel width can be extend easily, support motor bike bicycle and wheelchair pass.

OUR ADVANTAGES

The stylish stainless steel column and clear toughened glass wing present a bright and concise design.

Bi-directional opening facilitates fast and safe access. It can also be integrated with recognition systems

for user friendly access control.

Featured with high security and stability, it’s suitable for banks, corporate headquarters, airports and leisure

venues.

MAIN FUNCTION AND FEATURES

1. Stainless steel housing, rain-proof laser opening, novel and beautiful.

2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.

3. Length of arm: 500mm to 800mm.

4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).

7.Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

10. Gate can be set as normally open or normally closed.

11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)

12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

16. Support infrared photocell for anti-pinch and reset function.

PRODUCT ​ APPLICATION

The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control
