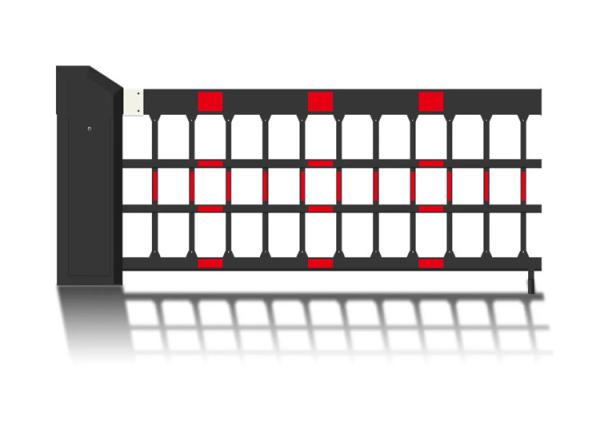

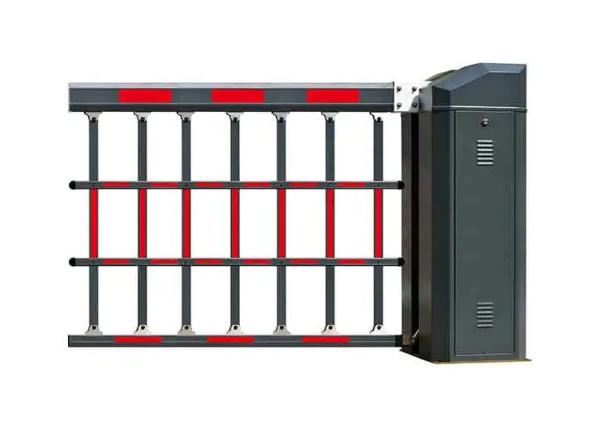

Four Layer Fence Boom Heavy Duty Automatic Control Airborne Barrier Gate

Product Performance Characteristics

Our company has carefully designed and produced an airborne gate, which is easy to use, safe and reliable, simple and elegant, and beautiful. The products are widely used in traffic fortresses such as commercial districts, large parking lots, commercial and residential areas, commercial plazas, office buildings, catering hotels, highways, provincial toll stations and other major roads.

Technical Parameter

Movement characteristics

(1) The most stable non-constant speed operating mechanism is adopted to make the brake lever start slowly, run fast, and stop slowly, so as to eliminate the jitters caused by the brake lever during operation opening and closing. Extend product life

The use of high-bearing load-bearing bearing with seat makes the movement part more stable

(3) Adjustable mechanical limit makes installation and commissioning more convenient and fast

(4) Adopt high-sensitivity limit switch, instantly control the starting and falling rods in place accurately

(5) Integrated turbine worm drive deceleration asynchronous motor, stable transmission, low noise, compact structure, can achieve self-locking

(6) The motor is equipped with an intelligent overheating protection system, which controls the temperature rise of the motor under frequent use, making the motor not easy to burn out

(7) Manual opening mechanism, the barrier can be lifted or lowered by the motor hand wheel during power failure

Working Principle

The mechanical power is driven by the motor through the turbo worm reducer to drive the output shaft, and the motion is transmitted to the lever through the planar four-bar mechanism, and the magnetic sensor switch is used to accurately position the horizontal and vertical positions of the barrier during operation, so as to achieve Control of the barrier. (For details, see illustration)

Spring Pull Hole Description

The balance tension spring is installed inside the housing to balance the weight of the barrier. During the debugging and installation process, the force between the spring pull hole and the main shaft can be changed according to the length of the barrier (6m, 5m, 4m, etc.) so that the barrier can reach the balance without replacing the spring. When the length of the barrier changes, just adjust the spring hole, the spring tension is the largest when the spring hanging arm is the outermost hole.

FEATURES AND FUNCTIONS

1. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.

2. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.

3. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.

4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.

5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.

6. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.

7. Integrating electricity and mechanical control, flexible operation, convenient and reliable.

8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.

9. The system uses a standard electrical interface externally, which can be easily attached to other systems.

10. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.

Application
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
