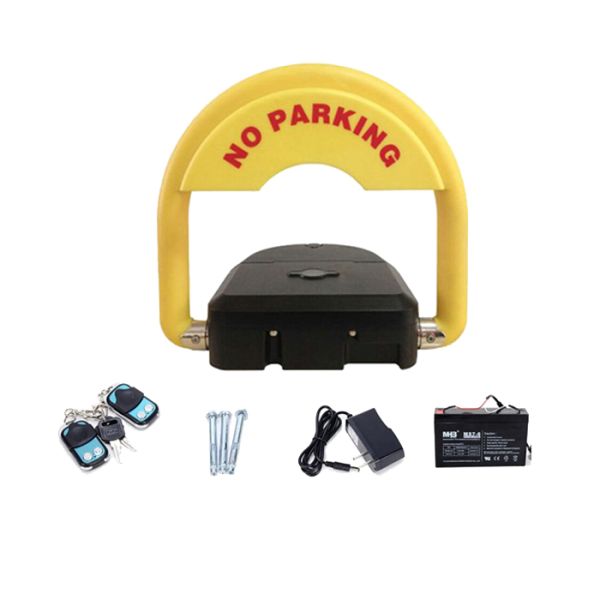

CE Certificate IP 68 Waterproof Wireless 180 Degree Intelligent Automatic Solar Parking Lock

FUNCTIONS AND FEATURES

1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing

short circuit; battery installation is easy.

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons;

the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced

nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced

to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity

and lesser friction.

7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.

8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.

PRODUCT INSTALLATION

A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.

B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference

around.

C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the

package to fasten it. (as the following drawings show)

• Locking and unlocking
• The way to put in and out the battery

• Drilling 3*∅10 deep 50mm
• Put the nuts
• Positioning the parking lock
• Fastening the nuts
• Cover installing

FAQ

1. How many models parking lock do you have?
-------- New Zine-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
2. How many remote controls are in each parking lock?
-------- 2 pcs.
3. What is the waterproof grade?
-------- PI68.
4. Can express delivery the parking lock?
-------- Yes, the express could deliver the parking lock , but we need to take out the parking lock battery. As you know, the express shipping company is strict to send the battery.
5. What's you warranty?
-------- 1 year time warranty.
