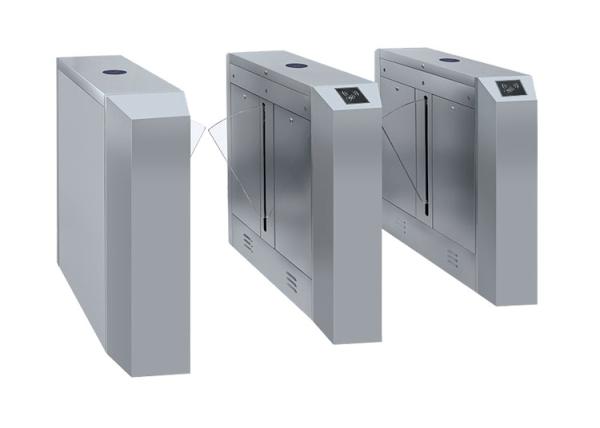

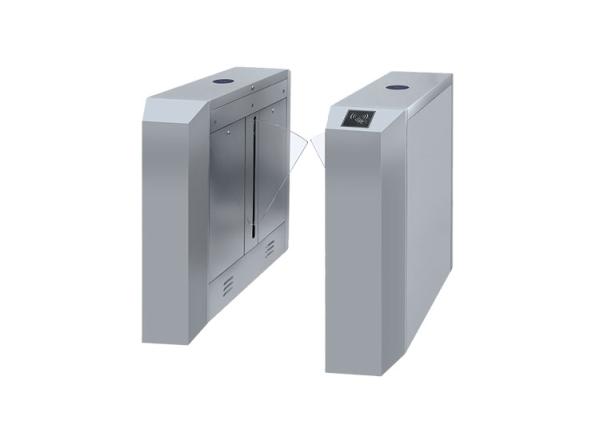

Bi-Directional Access Control System Automatic Flap Barrier Turnstile Gate With Face Recognition

PRODUCT DESCRIPTION

A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired.

These turnstiles provide a barrier to entry with a very pleasing and inviting appearance. A flap barrier turnstile is often

used in office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building

entrances.

Flap barrier consists of cabinet,reader module,main control module,motor&driver module,infrared photocell,alarm device,

limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and

ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent

flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control

and tolling etc.

Quick Detail

Place of Origin:Guangdong, China (Mainland )

Brand Name:SINOMATIC

Model Number:SN-FB01

Power Supply:AC100V~240V

Temperature:-35 to 65 degrees

Humidity:<95%, without concretion

Passage Width:<=600mm

Passing Speed:30~40 persons/min

Power Consumption:100W

Input Interface:+12V electrical signal or impulse signal

Communication Interface:RS485 (Distance:<=1200m)

Material:304 stainless steel

Dimension:1200*280*980mm

MAIN FUNCTION AND FEATURES

1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.

PRODUCT SPECIFICATIONS
