PRODUCT DESCRIPTION

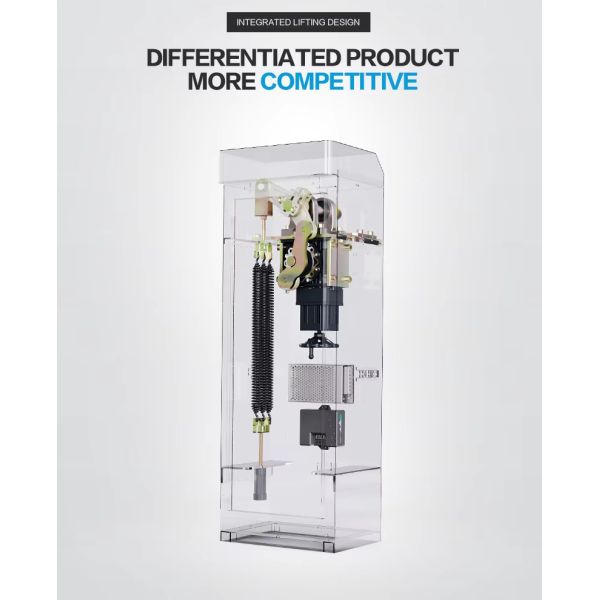

We are one of the top manufacturers of parking barrier gates and related accessories in China. Let me introduce the barrier gate DZ-2411 to you, which is able to be widely use for bus station, shopping mall, airport, hospital and so on. It adopts 6th-generation DC Brushless motor, which uses international leading technology integrated design, mold manufacturing, compact structure, high precision, high consistency and standardization, high efficiency, long life, no oil leakage, no blockage , low noise and other characteristics.

TECHNICAL PARAMETER

1. Working temperature(motor): -35℃~+65℃

Rated Supply:24/100/240VAC,50/60Hz
Running speed:3sec to 6Sec(adjustable)
Rated power:160W
Driving Method:DC Brushless Motor
Humidity:≥90%
Remote control distance:≤100M(open,sunny weather)
IP Degree:IP54
Motor No-load Speed:1850r/min
Max Boom Length:3M-6M

TECHNICAL SPECIFICATIONS

FUNCTIONS

1. Operation speed can be adjusted.

2. Slow up and slow down can be adjusted.

3. The limit angle can be adjusted.

4. Left and right direction can be quickly interchanged.

5. The barrier arm can be manually operated in case of power failure.

6. 418 frequency learning code anti-copy remote controller.

7.Infrared photocell sensor I/O signal input function.

8. Loop detector and radar I/O signal anti-collision signal input function.

9. Up, down and stop I/O signal input function.

10. Counting (fleet) function.

11.LED light I/O signal output function.

12.Traffic light I/O signal output function.

13.Up and down in place, normally open and normally closed signal output function.

14.RS485 communication output function.

15.Delay arm drop function.

16.Arm auto-reverse function.

17.Automatic lifting function when power is off (requires additional power storage module).

18.I/O port single-key cycle up and down function.

19. Loop detector normally open and normally closed function.

20.One car passes through each signal to prevent toll evasion function.

21.Anti-collision alarm function (requires additional alarm and sensor).

22. Fire linkage signal input function.

23.The I/O port closes the signal input function.

24.24V storage battery input function.
