PRODUCT DESCRIPTION

The Automatic Boom Barrier is an automated traffic control system designed to provide a secure and reliable access control solution for any facility. It is equipped with advanced features such as adjustable speed, temperature resistance from -35℃ to +65℃, IP54 protection level, and low noise level of ≤50dB. With its Automatic Boom Gate System and Automatic Parking Barrier, this Automatic Boom Barrier is the perfect choice for any access control application. It is highly reliable, easy to install and maintain, and provides a secure and efficient way to control the flow of traffic.

The 4^th generation non-spring servo motor ultra-high-speed barrier gate matches the latest developed inflatable arm, which is very lightweight and solves the technical problem of requiring both speed and long barrier arm length while maintaining stable operation.

It has made a breakthrough in solving the technical problem that traditional barrier gates need spring balance to operate smoothly.

It adopts the industry's most stylish round barrier housing design, with integrated mechanical and electrical design, left and right direction can be quickly interchange, high-precision and long life planetary reducer design, high-speed and high-torque ac servo motor design, ultra-high-speed operation intelligent driver, can operate smoothly and accurately in 0.2 seconds. Fully realizing fast passage of the highway etc lanes, and can work continuously for more than aver 10 million times for over 20,000 hours, reaching military-grade

Lifespan. Truly achieves safety, stability, reliability, durability, innovation, and high-quality high-end products.

PRODUCT PARAMETER

PRODUCT FUNCTIONS AND FEATURES

1. Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5. The barrier arm can be manually operated in case of power failure.
6. 418 frequency learning code anti-copy remote controller.
7. Infrared photocell sensor I/O signal input function.
8. Loop detector and radar I/O signal anti-collision signal input function.
9. Up, down and stop I/O signal input function.
10. Counting (fleet) function.
11.LED light I/O signal output function.
12.Traffic light I/O signal output function.
13.Up and down in place, normally open and normally closed signal output function.
14.RS485 communication output function.
15.Delay arm drop function.
16.Arm auto-reverse function.
17.Automatic lifting function when power is off (requires additional power storage module).
18.I/O port single-key cycle up and down function.
19. Loop detector normally open and normally closed function.
20.One car passes through each signal to prevent toll evasion function.
21.Anti-collision alarm function (requires additional alarm and sensor).
22. Fire linkage signal input function.
23.The I/O port closes the signal input function.
24.24V storage battery input function.

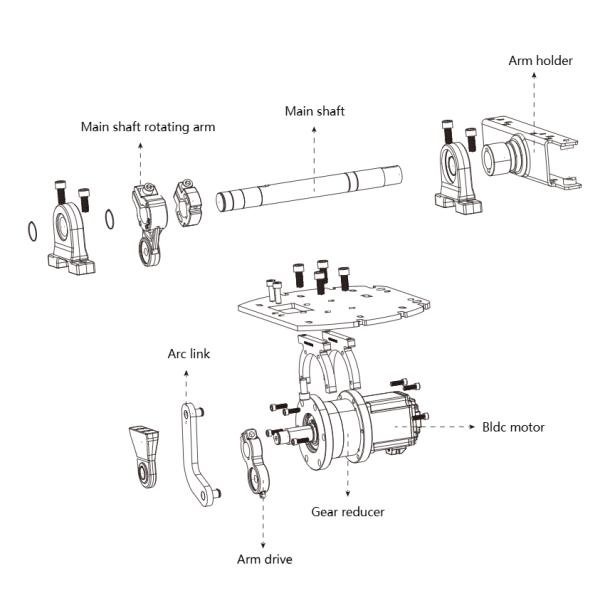

MECHANISM

PACKING LIST

Electrical installation, wiring diagram

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it, just connect the 220V(some countries 110V) power supply and the protective ground wire to work.
2. Traffic light interface: 2a24v voltage traffic light use.
3. Infrared anti-smashing interface: External infrared anti-radiation device, and the switch signal of the anti-radiation output can be connected.
4. Ground sense(loop detector) interface: Support external ground sense. When using an external ground sensor, you only need to connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: Connect the switch signal from the system
