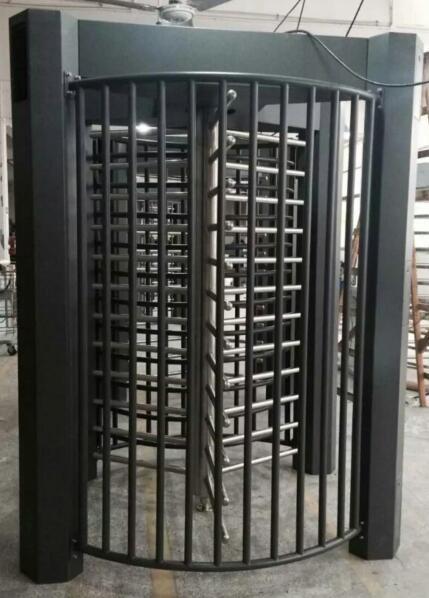

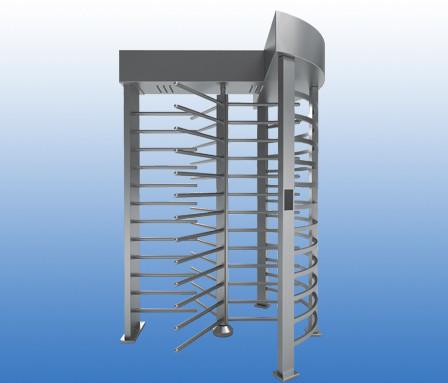

304 Stainless Steel Turnstiles Semi Automatic , Full Height Security Gates

◆ The center rotor will be set free (default) or locked (optional) automatically when the power is off.
◆ Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be

remote-controlled whether the power is on or not.
◆ The structure has no motor.

Function Specifications:
◆ Both directions can be set as controlled mode or free mode.
◆ NO mode & NC mode can be switched over by users easily & freely.
◆ Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
◆ Each machine can be set by Physical Address (Optional).


Framework Specifications:
◆ Framework: 304 (Standard) / 316 grade stainless steel
◆ Thickness of Ply: 1.5mm (Standard) / 2.0mm
◆ Finishing: Brushed surface (Standard) / Polishing surface
◆ Arm Length: 610mm(Standard) 500~700mm
◆ Arm Diameter: 38mm (Standard) / 48mm
◆ Max Tolerance of Arm: 30kg
◆ Driving Force of Arm: 3kg


Electric Specifications:
◆ Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz
◆ Operation Voltage: DC24V
◆ Operation Current: 3A / 5A (Max)
◆ Driving Motor: Brush DC motor
◆ Communication Interface: RS485 / RS232;

◆ Control I/O: Relay Out / Level Input
◆ Transit Speed: 20~35 passage / minute
◆ Temperature: -20℃~60℃
◆ Work Environment: Indoor/ Outdoor (Shelter)
◆ Traffic-light Indication


Customized Features:
◆ Alternative Materials, Finishes and Custom Design
◆ Access control System Integration
◆ Ticket System Integration
◆ Camera System Integration
◆ Thermostat System Integration
◆ Remote-Controlled Button
◆ Usage Counters
◆ Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module


Applications:
◆ Prison
◆ Office building
◆ Government
◆ School
◆ Hotel
◆ Super market
◆ Bank
◆ Park

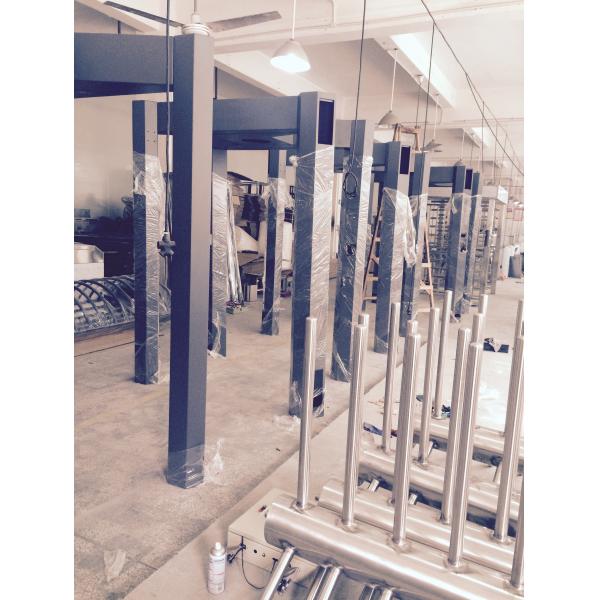

Case Reference
