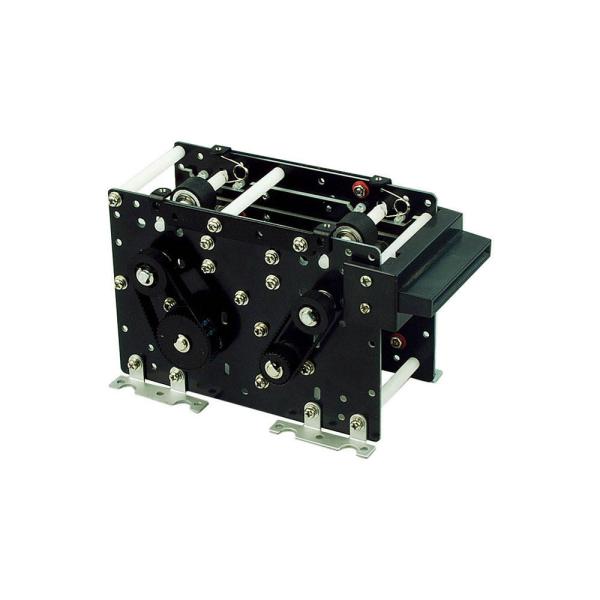

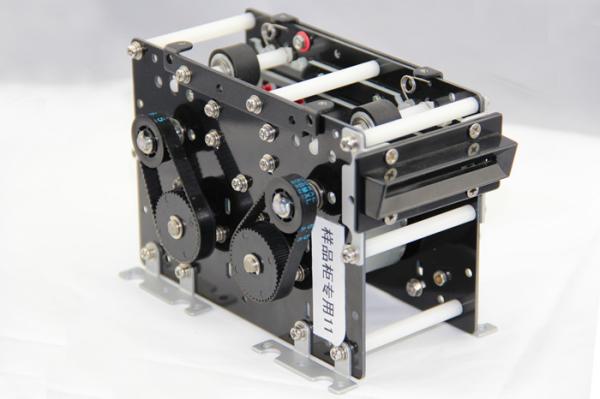

Anti Corrosion Electronic Card Dispenser With Plastic Mouth RS232 Interface

1.1 Description

The high strength and the anti-corrosion material is used for KTCR-615 card collector and which is produced in accord with the industry standard. The card collector is designed for requirement of the automatic ticket-check system The antenna installation place is reserved in advance with the function of selection of card recycling and avoid wrong acceptance and card following.

1.2 elementary functional Introduction

• With options to quit cards and callback cards if overtime under jamming
• With options to quit cards or callback cards in force under jamming
• With options to quit cards or not quit cards if overtime
• With options for the time of quitting cards if overtime
• With the function of avoiding wrong collection and card following. If the movements of the first card is not be finished, the second cards will not be collected
• The signal of enabling of monitor computer and open can be offered
• The validation or invalidation of cards can be received
• Sound and light alarm in error condition

1.3 Card material

All kinds of paper cards and PVC/ Mylar cards

1.4 Net of card collector

About 0.7kg Dimension:150L*95W*100Hmm

1.5 Collect time

About 2S

1.6 Electrical Specifications

Rating Voltage: 24VDC±10%

Current Consumption: Peak-2.2Amp

Static Consumption: 0.1Amp

1.7 Environmental Specification

Temperature: -40℃ to 85℃(industrial)

Relative humidity: 30%-90%

Location: Within a suitable cabinet

1.8 control interface description

TTL electrical level control interface is offered by the TCR-615 card collector which is educed by the CN1 of electrical outlet in the control broad. The socket connectors with 2.54 mm space between is used as electrical outlet.
