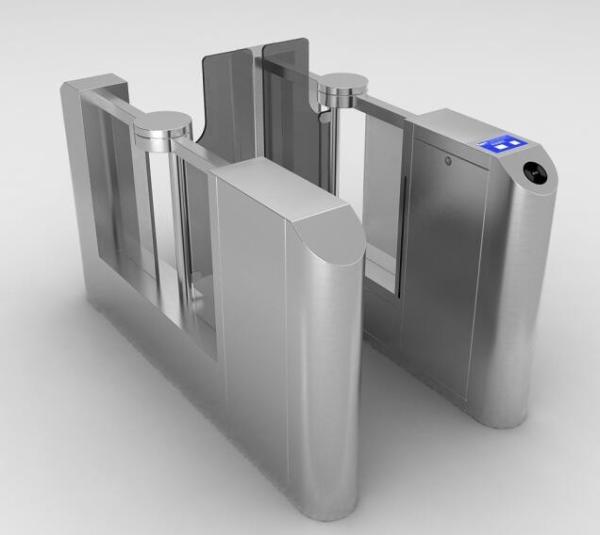

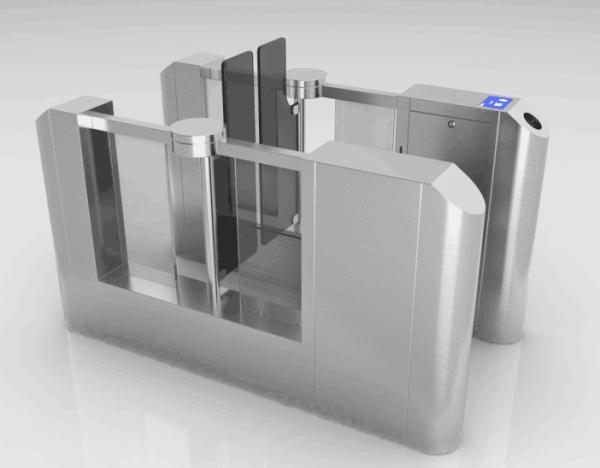

Fast Speed Optical Barrier Turnstiles Slim Body SUS316 Stainless Steel Shell

Model: KT206

1. Technical parameters:

1.1 Framework: SUS316 stainless steel shell (Thickness: 1.5mm)

1.2 Casework size: 1600*280*1000mm

1.3 Net Weight: approx 90Kg(single-mechanism unit), approx 110Kg(double-mechanism unit)

1.4 Length of swing arm: 445mm, lane width: 900mm(wheelchair can pass through)

1.5 The most bearing force of the swing arms: 30Kg

1.6 Rotating angle of swing arms: 180degree

1.7 Swing direction: one way or two ways (can be setup), with card mounting brackets

1.8 Working power: AC220 ±10%V/50 ±10%HZ or AC110V ±10%V/560±10%HZ

1.9 Driving electromotor: DC24V Server Motor (400W)

1.10 Input interface: Dry contact signal or 12V level signal or 12V pulse signal with width of more than 100ms, driving current>= 10mA

1.11 Communication interface: RS485 standard communication distance≤1200m

1.12 Transit speed: 40persons/min(open often), 25-30persons/min(close often)

1.13 The time of opening/closing gate: 1.0sec

1.14 Starting time after power is on: 3secconds

1.15 Automatic reset time after fault: 10seconds

1.16 Working environment:

Indoor, outdoor( with a tent over)
Temperature: -10cels—50cels

Relative humidity: ≤90%

1.17 Arm material: acrylic transparent plate(color are optional from red, blue, and green)

1.18 With LED flowing green arrow/red cross traffic indicator

2. Function and characteristics:

1) With function of self-examine and alarm, it is convenient for maintenance and use.

2) Being able to program running status by the small keyboard in the main board

3) Preventing pedestrians from being nipped and from hurt by infrared induction anti-nip function

4) Anti-collision function: Arms are automatically locked till opening signal is received.
5) Arms synchronization (for double swing barriers, adjustable)
6) Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable(1-60sec).

7) The status for permanent open/close can be set to meet different requirement.

8) Automatic reset when induction or time-prolonged, standard time is 5sec.

9) Automatically open the gate when power off and automatically close when power on, which accords with fire-protection.

10) Anti-nip mechanically, it will stop or reverse in the preset time when blocked.
11) Can be integrated with button and all kinds of access controller/reader.

System Integration Optional:

1) Counter and counter display

2) Access controller or card reader

3) Button by-pass

4) Coin-operated mechanism

5) Biometric control devices

6) E-ticketing Manager System

……

Application:

Bank

Bus/Railway station

Company

Building entrance

The place where need access control, flow control, identification……
