Specifications
Brand Name :
Koten
Model Number :
KT2480
Certification :
CE
Place of Origin :
China
MOQ :
5 pcs
Price :
216.00-324.00 USD per pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 pcs per month
Delivery Time :
5-12days
Packaging Details :
Packed in carton, carton size: 34*34*64cm, GW: 3.0Kg
Material :
ABS, Aluminumn alloy
Color :
white
Power input :
7-12VDC
Max reading distance :
120m
Communication interface :
Wiegand 26bit 34bit 36bit 44bit, RS232 RS485
working temp. :
-40℃ ~ +85 ℃
Working humidity :
10% ~ 90%
Weight :
2.65Kg
Description

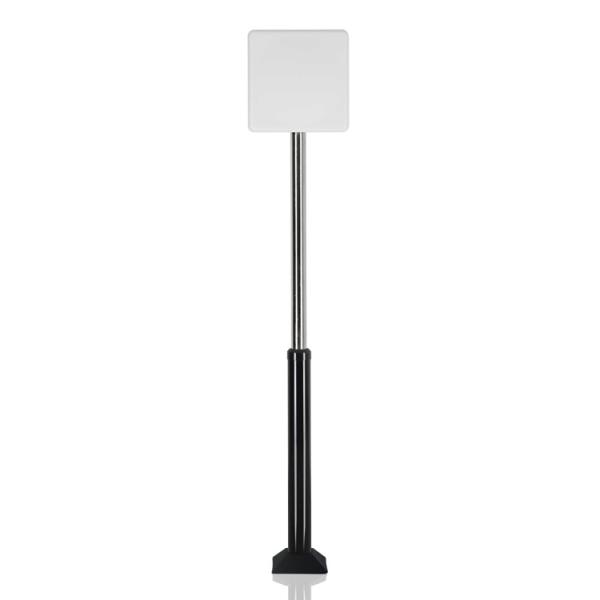

KT2480 2.4GHz directional long-distance card reader.

Product features

Using 32 high performance ARM Cortex-M3 core microcontroller

tag identification speed of 2000 labels per second ( time order sent )

tag reading ability of 1000 in / sec

label buffer capacity of 1000 labels ( can prevent stress )

Using 18dBi high gain directional antenna

maximum reading distance 120 meters

directional ability of 30:1

With a signal attenuator card reading distance can be adjusted 1-120 meters

Card reader technology parameters

Processor : 32 ARM Cortex-M3 microcontroller core

Frequency : 72MHz

Ability to read the label: 1000 in / sec

Buffer capacity: 1000 labels ( can prevent stress )

The maximum reading distance: 120 meters

The attenuation distance: 1-120 meters can adjust ( distance error of ± 15% )

Voltage:12VDC ( 7-12VDC )

Current:≤ 100mA

Communication interface: Wiegand 26bit 34bit 36bit 44bit

RS232 RS485 (factory setting 9600 8 N 1 )

Working temperature: -40℃ ~ +85 ℃( industrial grade)

Storage temperature: -60℃ ~ +85 ℃

Work humidity: 10% ~ 90%RH

Weight: 2.65kg

Size: 308x308x80mm

Technical parameters of the antenna

The frequency range: 2.400-2.480GHz

Gain: 18dBi

Power angle: 55 °horizontal / vertical: 45 °

Polarization mode: Vertical / horizontal

Bobbi: ≤ 1.5

Before and after the ratio:≥24dB

The input impedance:50 ohms

Lightning protection:The DC grounding

Wind resistant ability:80m/s

Installation:LU code holding pole

The supporting rod:Φ 30-Φ 50

The outer shell: ABS engineering material waterproof shell

Terminal definitions

No. Color Lead the definition
1 red +12VDC ( 7-12VDC source)
2 black GND ( power )
3 green D0 ( Wiegand 0 )
4 white D1 ( Wiegand 1 )
5 brown TXD ( RS232 sending end )
6 orange RXD ( RS232 receiver)
7 blue A ( RS485 )
8 purple B ( RS485 )
9 yellow IN1 ( card control input )
10 gray beeper ( buzzer open-collector output )
