Motorised PVC Card / Hard Paper Card Dispenser Machine Adjustable Collecting Speed
Motorised PVC Card / Hard Paper Card Dispenser Machine Adjustable Collecting Speed
Motorised PVC Card / Hard Paper Card Dispenser Machine Adjustable Collecting Speed
Motorised PVC Card / Hard Paper Card Dispenser Machine Adjustable Collecting Speed
Specifications
Brand Name :
Koten
Model Number :
KTCR300
Certification :
CE
Place of Origin :
China
MOQ :
20 units
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
1000units per month
Delivery Time :
10-20days
Packaging Details :
Each packed in one carton box, several boxes in one carton
Material :
steel, PCB
Color :
blue
ticket type :
pvc card, hard paper
Operating voltage :
DC24V, 3A
card collecting speed :
1s, adjustable
Optional function :
RFID card read/write, QR, bar code reading
Ticket out ways :
horizontal, vertical
Working temp. :
-20---60degree
Working humidity :
30-90%
Signal output :
TTL & RS232
Description

General Description

TCR-32C-XX (D) Series card collector makes of the high-intensity and resist surface corrosion materials. It is designed and produced on industrial standard. The core is especially design for access barriers system. It is applicable to automatic ticket checking system in tourist attractions and exhibition venues or others auto ticket checking system.

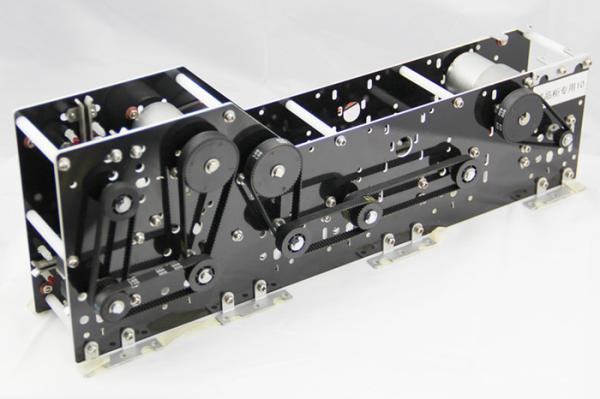

There are two important components which are straight mechanism and turning mechanism, and customers can be any combination to meet different needs.

Characteristics

  • Industrial design fit for high and low temperature environments.

  • Can install bar code scanner, RF reader or other tickets checking device

  • Slotting functions with paper tickets, can be set 4 different drilling locations

  • Aclinic tickets in, up (90°) and aclinic tickets out (optional).

  • Automatically collect tickets and over 3 seconds automatically quit tickets

  • Collect tickets continuously: the second ticket can be collected when the first ticket is waiting to be taken away

  • Adjustable tickets collecting speed to fit for different bar code scanners and RF readers.

  • LED for status indicator and buzzer alarm for failure

  • Forcedly collect ticket when detecting valid ticket in the process of quitting ticket, forcedly quit ticket when detecting invalid ticket in the process of collecting ticket.

Supply many kinds of signal output and order input

1.2 Technical data:

Card Material: paper tickets, RF cards

Slotting speed: about 0.6s

Collecting speed: about 1s (adjustable)

Operating Voltage: 24V DC /3A

Operating temperature: -20℃ to+ 65℃

Operating relative humidity: 30%-90%

Used condition: installed in bin
