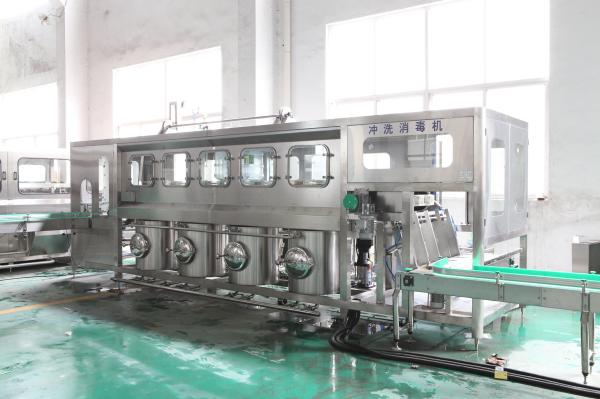

3-5Gallon Barrel Packing Machine Equipment Plant

19 L Plastic Bottle Filling Capping Machine

Q1. What is the application of this machine?

A1:This QGF series barreled water filling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto wear lid and capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.

Q2:What are the characteristics of the machine?

A2:(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

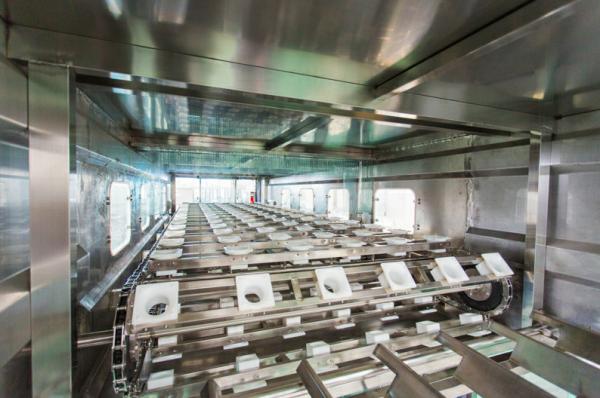

Automatic Bottle Loading System

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

• Washing capacity: 1200 bottles per hour

• Washing station: 8pcs

• Washing stops: 16pcs

• Each washing stops washing time: 18 seconnds

• Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

• Washing pump 4pcs fixed with each water tank.

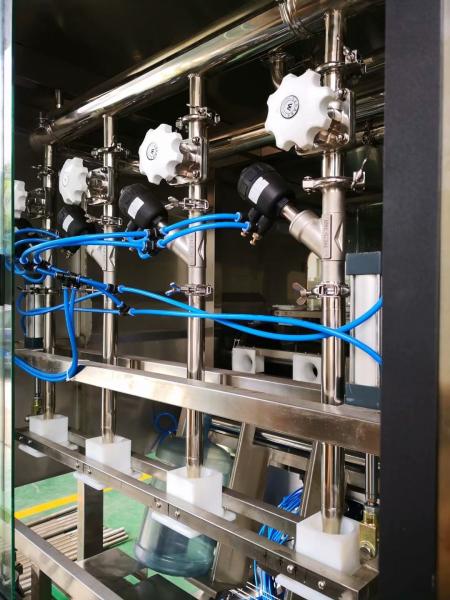

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

• Filling Nozzle: 8pcs SUS304

• Filling Capacity: 1200 bottle per hour

• Suitable to bottle dimension: 3,5,6 gallon bottle

• Drive motor power 2.2kw 1pc

• Dimension: 1800×1200×2500mm

• Weight: 600kg

Feature:

• Gravity style filling nozzle, high filling precision

• Under PLC control, full-automatic working

• SUS304 water bowl, inside polish

• SUS304pipeline, valve and other contact parts

• Emergency stop button

• Automatic alarm system when accident

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

Our Service

What kind of service can your company provide?
A: Throughout the cooperation process, our company can provide the following three services.
1.Sample service
We can send you a video of the work of this machine.
You are very welcome to visit our company and check the operation of the machine on site. We will send someone to pick you up at the airport.
2. Customized service
We can customize the machine according to the customer's requirements (such as material, power, filling type, bottle size, etc.), and our engineers will also provide professional advice to help customers better establish the ideal factory.
3. After sales service
After receiving the final payment, we will provide the bill of lading in time to ensure that the customer receives the goods as soon as possible.
Once you have completed all the preparations, we will send engineers to your factory to install the machines and train your staff for free until they are able to operate the machine well.
We can provide one year warranty and spare parts, and free lifetime technical service.
