Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
Name :
5gallon filling machine
Packaging Type: :
Barrel, Bottles
Installation: :
Timely Overseas Engineer Ser
Condition: :
New
Machine Material: :
Stainless Steel SUS 304
Bottle Material: :
PC/PET/PP
Suitable For: :
Mineral Water/ Purified Water
Description

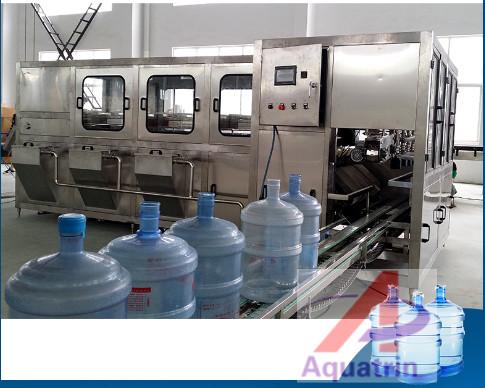

Automatic Bottled 5 Gallon Water Filling Line

5gallon Bucket Pure Water Washing Filling Sealing Machine

Main Features

This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Automatic Bottle Loading System

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

  • Washing capacity: 1200 bottles per hour

  • Washing station: 8pcs

  • Washing stops: 16pcs

  • Each washing stops washing time: 18 seconnds

  • Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

  • Washing pump 4pcs fixed with each water tank.

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

  • Filling Nozzle: 8pcs SUS304

  • Filling Capacity: 1200 bottle per hour

  • Suitable to bottle dimension: 3,5,6 gallon bottle

  • Drive motor power 2.2kw 1pc

  • Dimension: 1800×1200×2500mm

  • Weight: 600kg

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

No 1. Cap Decapper

Model: DP-2

Function: to remove the caps that leave the 5gallon bottle that after used Technical Parameter

  • Decapping heads: 2pcs

  • Decapping Capacity: max 1200 bottle per hour

  • Machine size: 800×500×1750mm Machine

  • Weight: 150Kg

  • Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Outside Brush machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

Model: SL-30E 5 gallon labeling machine Automatic Sleeve Labeling Inserting Machine:

Model SL-30E
Labeling Speed ( capacity) Max1,600 bottle per hour
Suitable to Bottle Diameter 3,5,6gallon bottle
Suitable to Bottle Height (mm) Max. 450
Suitable to bottle diameter(mm) Max.270
Suitable to Label length(mm) 35~100mm
Label thickness 0.035~0.08mm
Paper pipe interior diameter 3~10mm adjustable
Power 2.2kw
Machine Dimension 1500(L)* 950(W) * 2000(H) mm
Weight 350kgs

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm

SUS304 ISO 5 Gallon Water Filling Machine 1800×1200×2500mm
