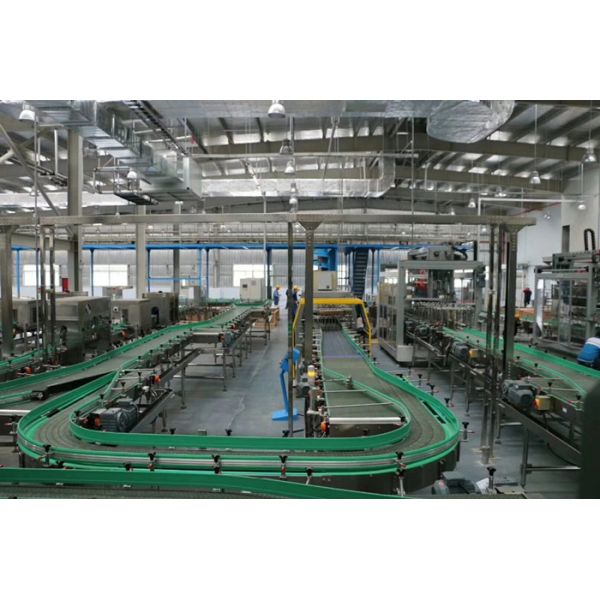

Automatic Glass Bottle Water Bottle Filling Machine

Specifications

Brand Name :

Aquatrin

Model Number :

CGF

Certification :

ISO CE

Place of Origin :

China

MOQ :

1unit

Price :

USD12000-50000 1Set

Payment Terms :

L/C, T/T

Supply Ability :

10units per month

Delivery Time :

45days

Packaging Details :

wooden package

Packaging Type: :

CANS, Bottles, Barrel

Condition: :

New

Keywords: :

Glass Bottle Filling Machine

Filling Material: :

Beer, Milk, Water, Oil, Juice, Powder

Machinery Capacity: :

8000BPH

Description

Automatic 6000-8000BPH 3 In 1beverage Glass Bottle Water Filling Capping Machine Line

Automatic 500ml 3 in 1glass bottle water juice filling and capping machine

Product Description

Application

This machine is mainly used for wine and sauce filling operation,this machine is combined of rinsing ,filling capping ;the whole procedure is full auto ,and suitable for glass bottle and aluminum steal-proof caps for filling vodka,wine,sauce and etc.the applicable bottle type can be adjusted freely and convenientiy.that is why the machine has more capacity and benefit compared other machine with same specification.this machine is adopted advanced programmable PLC ,and make the machine running auto ,and bottle input conveyor adopts transducer with speed adjustable ,and bottle output conveyor adopts speed adjustable motor .cooperation with transducer of main machine makes the bottle running smoothly and reliably ,it is convenient to operate with high auto because of every part of machine is inspected to run by photoelectric detector.the machine is idea-preferred equipment for beverage makers.

Main Technical Standards:

Model	JND 16-12-6G	JND 18-18-6G	JND 24-24-8G		JND 32-32-10G
Production Capacity(BPH)(500ml)	3000	5000	8000		10000
Applicable Bottle Type	(BottleDiameter)Φ50-Φ100mm(Height)150-320mm(Volume)250-2000ml
Total Power(kw)	2.2	3		4	5.5
Total Weight(kg)	3000	3800		5200	6500
Dimension(LWH)(mm)	245018302030	283020302030		322023002600	345025102710

Final Products

Equipment Type	Automatic
Bottle Type	Glass round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm
Output	up to 72,000 bph
Your product	glass water, juice

Washing Part

The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution

Filling Part

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose
