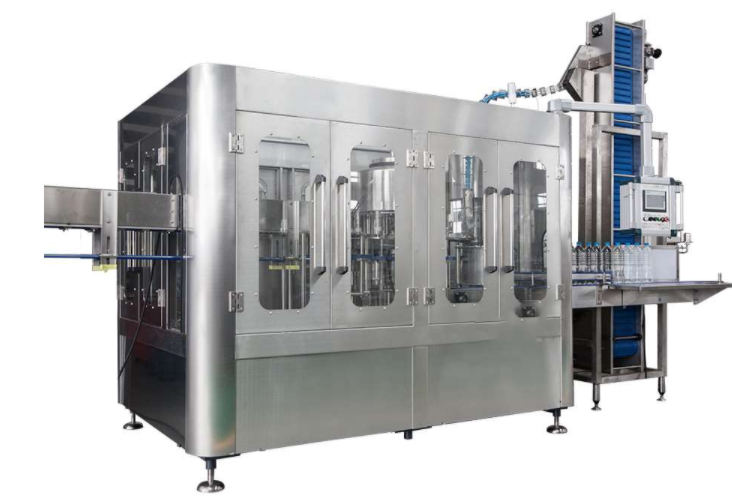

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Packaging Type: :
Bottles
Key Selling Points: :
Easy to Operate
Function: :
Bottle Washing Filling Capping
Place of Origin: :
Jiangsu, China
Packaging Material: :
plastic, wood
PLC: :
SIEMENS Mittisubishi
Description
Monoblock Mineral Pure Drinking Water Liquid Production
Water Bottling Machine
Product Description
The monoblock washing,filling and capping machine offer the industry's most proven washer,filler and capper technology in one simple, integrated system. In addition they deliver the high performance today's high speed packaging lines demand. By precisely matching the pitch between washer, filler and capper, monoblock models enhance the transfer process, reducing atmospheric exposure of filled product, eliminating deadplates, and significantly reducing feedscrew spills.
Technical parameter
Model
CGF16-16-5
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity(500ml)(B/H)
4000
6000
10000
13000
15000
Filling precision
<=+5(liquid level)
Filling pressure
<=0.4Mpa
Bottle height
160-320mm
PET bottle specification
Bottle diameter 50-115mm,Height160-320mm
Suitable cap shape
Plastic screw cap or crown cap
Total power
4.4
5.2
6.2
6.2
7.5
Overall dimensions
2250*1650*2250
2600*1965*2250
2980*2200*2250
3880*2200*2250
4000*2250*2500
Weight(kg)
2500
3500
4500
6000
7200
Detailed Images
Washing Part
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

  • Filling Part

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

Cap loading machine

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

We suplly Free Factory Layout design

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

We suplly Free Bottle Shape design

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

Company Introduction

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

Customer Photos

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping

0.4Mpa 4000BPH Automatic Water Bottle Filling Machine For Washing Filling Capping
