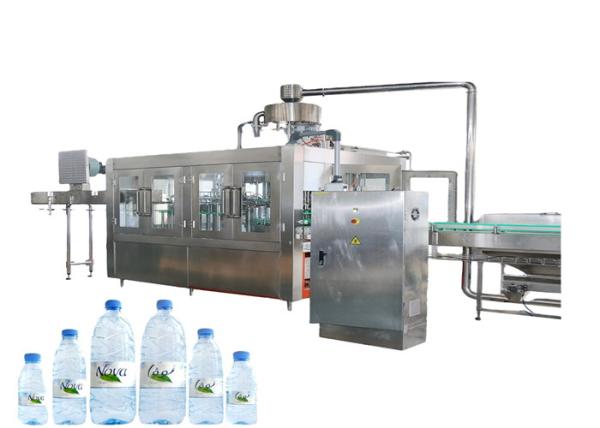

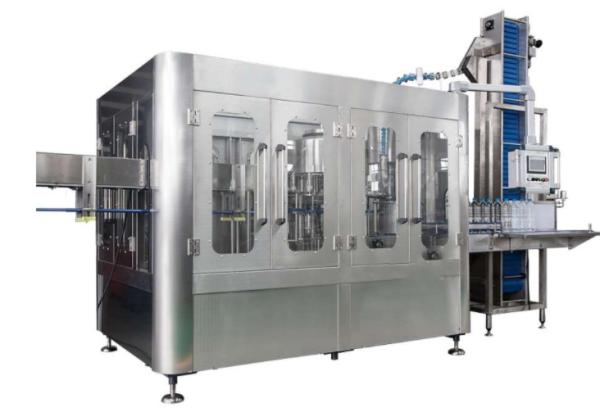

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
application: :
Beverage
Keywords: :
Water Packing Machine
Certification: :
CE ISO
Marketing Type: :
New Product 2020
Machine name: :
Automatic Capping Filling Machine
Description

High Quality Filling Machinery Water Bottling Machine, Mineral Water Filling Machine

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still
pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine

Technical Parameter

Model:
CGZ12-12-6
CGZ18-18-6
CGZ24-24-8
CGZ32-32-10
CGZ40-40-12
CGZ50-50-15
Capacity:(BPH)(500ml)
2000-4000
5000-6000
8000-12000
12000-15000
16000-20000
20000-24000
Suitable bottle standard:(mm)
150-300
150-340
150-340
150-340
150-340
150-340
Suitable cap standard:(mm)
φ50-φ110
Filling pressure:(Mpa)
0.2-0.3
Installed power:
3.13
3.84
3.84
5.6
6.3
7.3
Filling temperature:(℃)
Room Temperature
Dimension(L*W*H):(mm)
2400*1670*2350
2470*1970*2350
2865*2170*2350
3700*2570*2350
3800*2950*2400
4500*3400*2400
Total weight:(kg)
2500
3000
4000
5000
6000
7000

Rinsing Part

<1>Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine

Filling Part

<1>Material of filling valve and tank are made from stainless steel 304L.
<2>High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3>Circline liquid tank, the liquid level is controlled by floating ball.

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine

Capping Part

<1>High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine

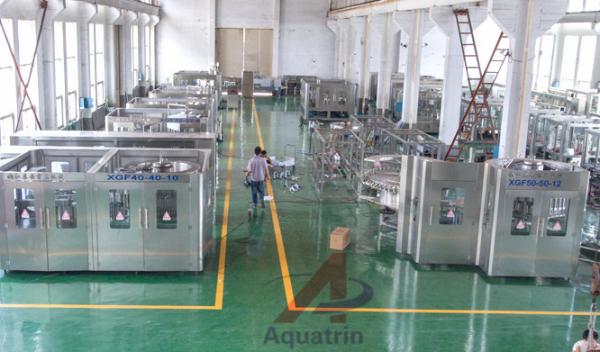

Complete Running Line

Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Machine parts Brand
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
we provide free factory layout
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
we provide free bottle design
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
Packing & Delivery

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport.
According to customers' special demand, we could adopt sheet iron case and so on.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Transport : By sea.
Dia 110mm Water Packing Machine 0.2Mpa Water Filling And Capping Machine
