PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle
Specifications
Brand Name :
Aquatrin
Model Number :
WD-150A
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD4000-10000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Function: :
Sealing Cuttting Shrink
Machine type: :
Shrink Wrapping Packaging Machine
Place of Origin: :
Jiangsu, China
Packing speed: :
8-10packages/min
After-sales Service Provided: :
No after-sales service, Free spare parts, Field maintenance
Description

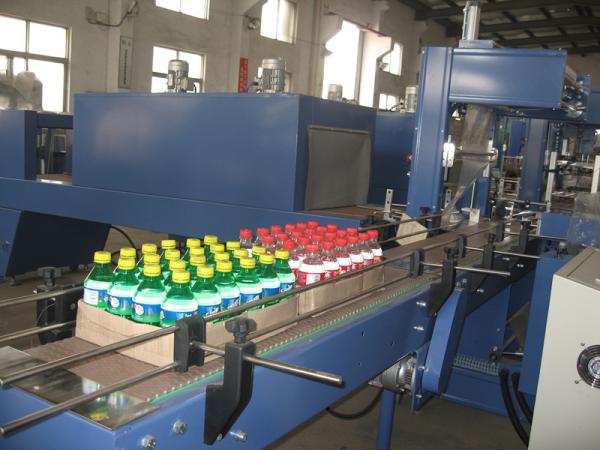

Automatic Plastic Bottle PE Film Heat Tunnel Shrink Wrapping Package Machine

Wrapping film Package machine

criterion collocation functionthree part

1WD-150A auto convey fracture; joint filling machine convey belt, divide two passage or one passage, control via frequency converter, speed adjust freely, can auto divide and sort bottles .

2WD-150A automatic film wrappage fracture, cam complete wrappage auto film covering and sealing, cutting function.

3WD-150A auto thermo shrinkage cooling fracture, can auto contraction and cooling function after film covering.

wrapping film machine

Main component detail list

no Name specification number brand
1 board production component
2 Plant metal component
3 pneumatic component 1 Taiwan Airtec
4 Electric controlling component and accessory
Photoelectric switch 4 South Korea Autonics
Proximity switch 2 South Korea Autonics
PLC 1 Thinget
Touch screen 1 Thinget
Frequency converter 3 Taiwan Telta
AC contactor 3 France Schneider
Mid-relay 8 France Schneider

External Dimension
 L5050*W920*H2200
The overall size of packaging machinery
Main Machine
 L1180*W1080*H2370
thermo-wind Stove
 L3890*W1050*H2040
Total Weight
 1t
The dimension of hot thermo-wind stove
 L3700*W920*H1800
Max.Packing Size
 L600*W400*H350
Packing Speed
 5-8 Packet
The speed of Conveyor
 920Adjustable 200
Working Power
 380V 20KW
Working Pressure
 0.6-0.8Mpa
Total Power
 18kw

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

Collocation name
Brand
Collocation name
Brand
Main drive servo
Schneider
PLC
Siemens
Photoelectric sensor
SICK
Pneumatic component
AIRTAC
Frequency transducer
Schneider
Glue machine
Robatech
Touch screen
Siemens
Servo controller
Schneider
Motor
SEW
Low pressure controlling
Schneider

Package type:

(1)350/500/550/600ML

big bag:4×6,4×5 ;

small bag,3×4,3×5 four type of package.

(2)1L/1.5L/2L/2.5L

big bag:3×3,3×4;

small bag,2×2,2×3 four type of package

2,Regarding can, we suggest adopt to package with tray, pack steadily.

3,Package speed:6-10bag/min

4,Meet with pre-treatment filling speed of filling machine.

Package material:PE thermo shrinkage film width(200-600mm),thickness(0.08-0.12mm)

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

Specification
Model
WD-150A
Overall Dimension
L5050*W3300*H2100mm
Machine Weight
1200kg
Heat Shrinkable Furnace Size
L3700*W920*H350mm
Max Size of Products
L600*W400*H350mm
Packing Speed
8~10Bags/min
Width of Conveyor Belt
920mm (Adjustable)
Working Power
3Phases AC/ 380V /20KW
Working Gas Pressure
0.6~0.8Mpa

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

PE Film 0.8Mpa Shrink Film Wrapping Machine For Plastic Bottle

Our Services

1.Efficience and convenient conmunication with tools online, e-mail and telephone.

2.The equipment we sell all have one year warranty.

3.We have advanced techincal engeinner to provide reliable after-sales service.

4.We assist to install machine freely, and we are in charge of adjustment.

5.We have many skillful technicians and we can provide professionl maintenance service.
