300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
300BPH 5 Gallon Water Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
Name :
5gallon filling machine
Packaging Type: :
Barrel, Bottles
Installation: :
Timely Overseas Engineer Ser
Condition: :
New
Machine Material: :
Stainless Steel SUS 304
Bottle Material: :
PC/PET/PP
Suitable For: :
Mineral Water/ Purified Water
Description

300BPH 5 Gallon Complete Mineral Water Filling Production Line

Product Description

Whole Water Bottle Filling and Packing Line

1. Automatic Washing

2. Automatic Filling
3. Automatic Capping
4. Water Treatment Plant
5. Removing cap machine

6. Inside&Outside Brushing Machine
7. Date and Batch Coding Machine
8. Sleeve Shrink Labeling Machine
9. PET Bottle Blowing System
10. Compressor Station

300BPH 5 Gallon Water Filling Machine

Product Paramenters
Model
QGF-300
Production capacity
300BPH
Filling Nozzle
2
Power supply
5.3kw
Air consumption
0.18M3/min
Pressure of rinse water
0.4~0.6Mpa
Alkali liquid inside washing
18s*1
Recycling water inside washing
18s*2
Recycling water outside washing
18s*1
Dimension
4000*1200*1700(L*W*H)

Cap removing machine

If your bottle is a recycling bottle and with a cap on it , this device can help you remove the cap from the bott

300BPH 5 Gallon Water Filling Machine

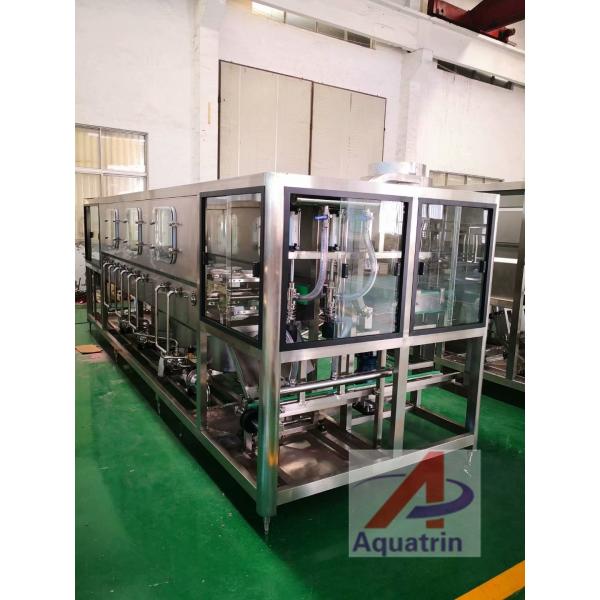

Outside&Inside brushing machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

300BPH 5 Gallon Water Filling Machine

QGF-300 Fillign Machine

Main Machine Features.

1. Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.


2. The thickness of the stainless steel plate which used for 600bph is 3mm.


3. Tank and the heating pipe in tank are removable which become more clean sanitation.

300BPH 5 Gallon Water Filling Machine

Filling Part Features.

1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.


2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

300BPH 5 Gallon Water Filling Machine

Capping Parts.

1. Liquid level difference is controlled in 1cm.

2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

3. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

300BPH 5 Gallon Water Filling Machine

300BPH 5 Gallon Water Filling Machine

300BPH 5 Gallon Water Filling Machine

Packing & Delivery

300BPH 5 Gallon Water Filling Machine

Our customers

300BPH 5 Gallon Water Filling Machine
