0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
Name :
5gallon filling machine
Packaging Type: :
Barrel, Bottles
Installation: :
Timely Overseas Engineer Ser
Condition: :
New
Machine Material: :
Stainless Steel SUS 304
Bottle Material: :
PC/PET/PP
Suitable For: :
Mineral Water/ Purified Water
Description

20 Liter 5Gallon Water Bottle Filling Machine

5 Gallon Water Bottling Machine / Jar 5 Gallon Filling Machine

5 Gallon Bottle Water Filling Machine can be used to fill 4 gallon 5 gallon 6 gallon bottled water.

Production: 60 -1200 Bottles/Hour

Bottle material: plastic

Suit for bottle size: 4 Gallon, 5 Gallon and 6Gallon can also be applied, but the sample bottle shall be provided.

We will assist you with establishing your bottled water plant from the conception of the idea to when you are ready to open your plant.

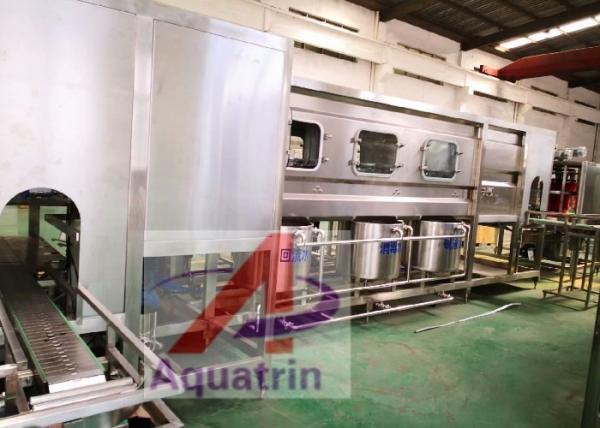

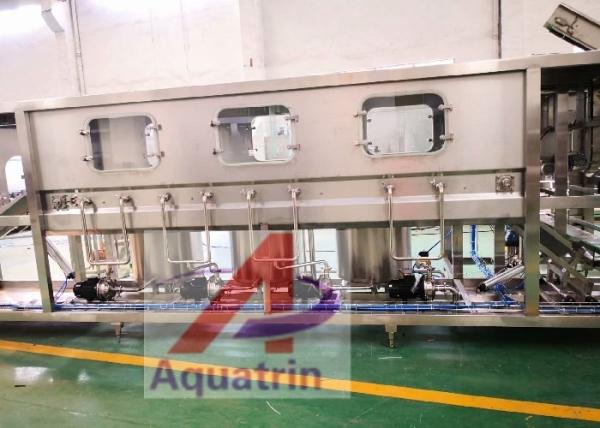

Automatic Bottle Loading System

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

  • Washing capacity: 1200 bottles per hour

  • Washing station: 8pcs

  • Washing stops: 16pcs

  • Each washing stops washing time: 18 seconnds

  • Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

  • Washing pump 4pcs fixed with each water tank.

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

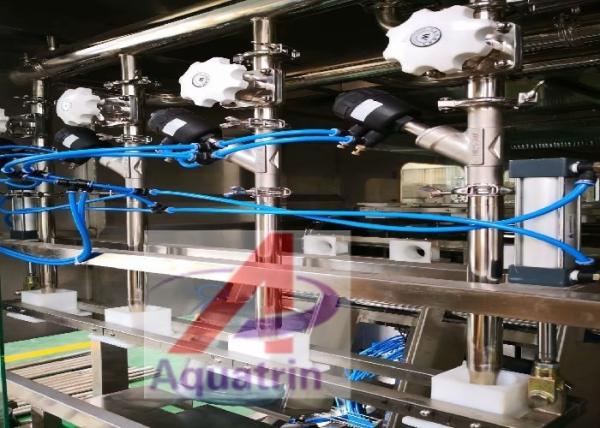

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

  • Filling Nozzle: 8pcs SUS304

  • Filling Capacity: 1200 bottle per hour

  • Suitable to bottle dimension: 3,5,6 gallon bottle

  • Drive motor power 2.2kw 1pc

  • Dimension: 1800×1200×2500mm

  • Weight: 600kg

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

No 1. Cap Decapper

Model: DP-2

Function: to remove the caps that leave the 5gallon bottle that after used Technical Parameter

  • Decapping heads: 2pcs

  • Decapping Capacity: max 1200 bottle per hour

  • Machine size: 800×500×1750mm Machine

  • Weight: 150Kg

  • Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

Outside Brush machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

Model: SL-30E 5 gallon labeling machine Automatic Sleeve Labeling Inserting Machine:

Model SL-30E
Labeling Speed ( capacity) Max1,600 bottle per hour
Suitable to Bottle Diameter 3,5,6gallon bottle
Suitable to Bottle Height (mm) Max. 450
Suitable to bottle diameter(mm) Max.270
Suitable to Label length(mm) 35~100mm
Label thickness 0.035~0.08mm
Paper pipe interior diameter 3~10mm adjustable
Power 2.2kw
Machine Dimension 1500(L)* 950(W) * 2000(H) mm
Weight 350kgs

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water

0.8Mpa 1200BPH 5 Gallon Water Filling Machine For Purified Water
