Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Electric Driven 5L Pure Water Filling Machine Grayity Filling
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD10000-30000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Filling Material: :
Water
Driven Type: :
Electric
Warranty: :
2 years
Filling Way: :
Grayity
Voltage: :
Customized, Customized
Dimension(L*W*H): :
4000*3000*3100
Description

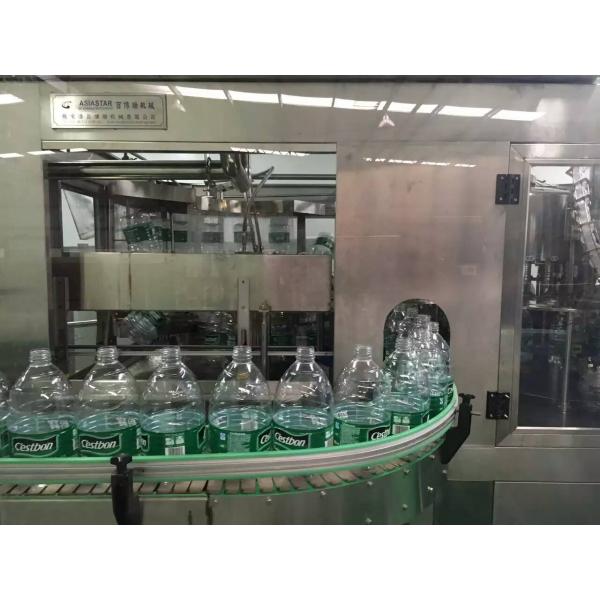

5L Mineral Water Filling Machine/Pure Water Bottling Machine/Water Filling Production Line

5L Water Filling Machine

New 5 liters water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international
famous brand.
This water washing filling capping machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the water filling machine manufacturers in China.
Details Images

5-10L Water Bottling Filling Machine

Electric Driven 5L Pure Water Filling Machine Grayity Filling

  • Motor: China
  • Speed reducer: JIE brand Hangzhou
  • Invert speed control: Mitsubishi
  • PLC: Japanese Mitsubishi
  • Touch screen: Mitsubishi
  • Electricity appliance: SIEMENS
  • Liquid control: Taiwan SIBAKE
  • Pneumatic element: AIRTAC 7,Volume of PET bottle: 5L

Cap diameter: plastic screw type cap diameter from 28mm to 38mm 9,Filling temperature: NORMAL TEMPERATURE

Filling pressure: ≤0.15Mpa 11,Pressure of washing: 0.2Mpa

Filling temperature: Normal temperature

Gas consumption: 0.5m³ /min 14,Power of main motor: 2.35KW

Filling precision: ±2-3%

Dimension: 2500*2000*2200

Weight: 4000kg

This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled liquid,water, minaral wateretc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

washing part

All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

304 stainless steel washing pumps

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Filling Part

using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle

together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level

Filling temperature is adjustable.

Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

Electric Driven 5L Pure Water Filling Machine Grayity Filling

capping machine

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Adhesive Stick Labeling machine

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Model PLM-A Yield(pcs/min) 30

Conveyor Speed(m/min) ≤40 Labeling Accuracy ±1.0 mm

The inner diameter of label roll 76 mm The outer diameter of label roll Design

The suitable size of labelWidth 15-300 mm length 15-300 mm

The suitable size of labeling objects Can customized depends on client product Printer use air 5kg/cm ²

Power(w) 2KW

Weight(kg) 3 60

Machine size 2200(L) 800 (W) 1300 (H) mm

PE film wrapping package machine

Electric Driven 5L Pure Water Filling Machine Grayity Filling

carton Box Package Machine

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Product packaging

Electric Driven 5L Pure Water Filling Machine Grayity Filling

Our customer

Electric Driven 5L Pure Water Filling Machine Grayity Filling
