Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD10000-30000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Machinery Capacity: :
1000bph
Filling Material: :
Water
Driven Type: :
Electric
Warranty: :
2 years
Filling Way: :
Grayity
Key Selling Points: :
High-accuracy
Description

5 10 19 20 Liter Automatic Plastic Gallon Water Bottle Rotary Liquid Filling Machine

5L big bottle water filling machine

This kind of linear type water filling machine can be used for 3L-10L bottle, and no need to change any spare parts when you change the bottle volume from 3L to 10L. More bigger bottle customized. the specific design can use for filling edible oil/cooking oil. All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean.Automatic 3L-10L Big Bottle Water Filling And Sealing Machine For Pure Water High precision filling nozzle/valves, PLC variable signal control, ensure high filling precision & filling smoothly & stably. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
Model
CGN14-12-5
CGN18-18-6G
CGN24-24-8H
CGN32-32-10H
CGN40-40-15H
Capacity
3000~4000BPH
5000~6000BPH
12000BPH
18000~20000BPH
24000~26000BPH
Bottle Size
3L---10L
Bottle Diameter
Φ50~106mm
Bottle height
150~320mm
Cap specification
Standard plastic rib caps

Main Features

1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Machine material with SUS304 and SUS316 4) No bottle no filling. no leakage.
Details Images

5-10L Water Bottling Filling Machine

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

  • Motor: China
  • Speed reducer: JIE brand Hangzhou
  • Invert speed control: Mitsubishi
  • PLC: Japanese Mitsubishi
  • Touch screen: Mitsubishi
  • Electricity appliance: SIEMENS
  • Liquid control: Taiwan SIBAKE
  • Pneumatic element: AIRTAC 7,Volume of PET bottle: 5L

Cap diameter: plastic screw type cap diameter from 28mm to 38mm 9,Filling temperature: NORMAL TEMPERATURE

Filling pressure: ≤0.15Mpa 11,Pressure of washing: 0.2Mpa

Filling temperature: Normal temperature

Gas consumption: 0.5m³ /min 14,Power of main motor: 2.35KW

Filling precision: ±2-3%

Dimension: 2500*2000*2200

Weight: 4000kg

This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled liquid,water, minaral wateretc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

washing part

All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

304 stainless steel washing pumps

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

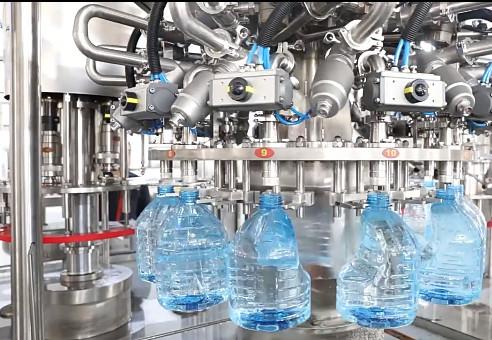

Filling Part

using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle

together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level

Filling temperature is adjustable.

Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

capping machine

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

Adhesive Stick Labeling machine

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

Model PLM-A Yield(pcs/min) 30

Conveyor Speed(m/min) ≤40 Labeling Accuracy ±1.0 mm

The inner diameter of label roll 76 mm The outer diameter of label roll Design

The suitable size of labelWidth 15-300 mm length 15-300 mm

The suitable size of labeling objects Can customized depends on client product Printer use air 5kg/cm ²

Power(w) 2KW

Weight(kg) 3 60

Machine size 2200(L) 800 (W) 1300 (H) mm

PE film wrapping package machine

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

carton Box Package Machine

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

Product packaging

Rotary 5 Liter Automatic Water Bottle Filling Machine For Liquid

FAQ

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations? A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Want to know more message , contact us with out hesitate ! Inquiry us now !
