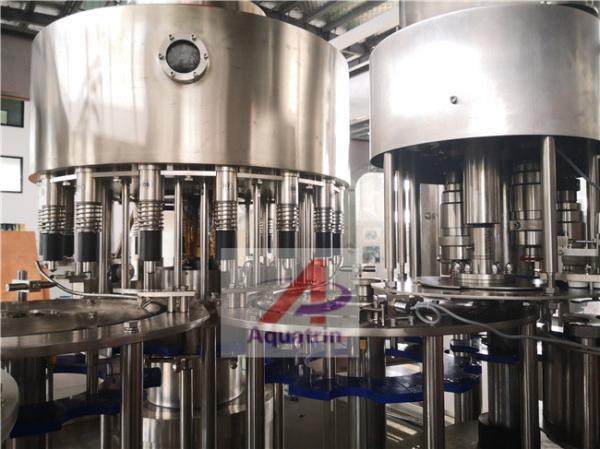

550ml Pet Plastic Bottle Drinking Beverage Pure Mineral Water Bottling Filling Machine
550ml Pet Plastic Bottle Drinking Beverage Pure Mineral Water Bottling Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Automatic Grade: :
Automatic
Material: :
SUS304/316
Filling Material: :
Beer, Water, Oil, Juice
Factory location :
2 hours from Shanghai
Bottle type :
Plastic Bottle round and square
Weight :
4T Water filling machine
Description

Water Filling Machine Features:
1. Integrate Bottling Rinsing, Filling and Capping into one.
2. Including bottle infeed air conveyor, tri-bloc Rinser-Filler-Capper and outfeed conveyor and Cap elevator.
3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.
5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.
6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
7. Bottles are rinsed internally and externally, No bottle, No Rinsing.
8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.
9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.
10. PLC control and friendly touch screen HMI interface.
11. Adjustable speed by inverter.
12. Fast and easy changeover to various bottle sizes.
13. Unique design bottle neck suspend system makes bottle move smoothly.
14. Easy to operate, clean and maintain.
Technique parameter:

Model CGF8-8-3 CGF14-12-5 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12 CGF50-50-12
Washing No 8 12 18 24 32 40 50
Filling No 8 12 18 24 32 40 50
Capping No 3 6 6 8 10 12 12
Capacity(500ml)BPH 2000 4000 7000-8000 10000-12000 12000-15000 15000-18000 20000-25000
Power(KW) 2 3.5 4 4.8 7.6 8.3 9.5
User Ambient Conditions Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement
Polyester bottle standard(mm) bottle diameter φ50-110 ; bottle height 150-340mm
