20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Filling range :
3-5 Gallon
Usage :
Beverage Filling Packaging
Processing Types :
Automatic Bottle Filling Sealing Machine
Material :
Stainless Steel 304/316
Filling Accuracy :
99%
Product name :
Promotional Top Quality 5 Gallon Bottling Water Filling Machine
Description
5gallon Water Filling Sealing Machine 3in1

Product Application.

1/Auto Bottle Uploader
2/ Decapping Machine
3/ Outside Brusher
4/ Inside Brusher
5/Rinsing Filling Capping Machine <with Cap Elevator and Sterilization System>
6/ Light Inspector+Cap Seal Shrink Machine
7/ Finished Products

Containers and Specifications
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

5 gallons bottle water filling machine
Main Features.

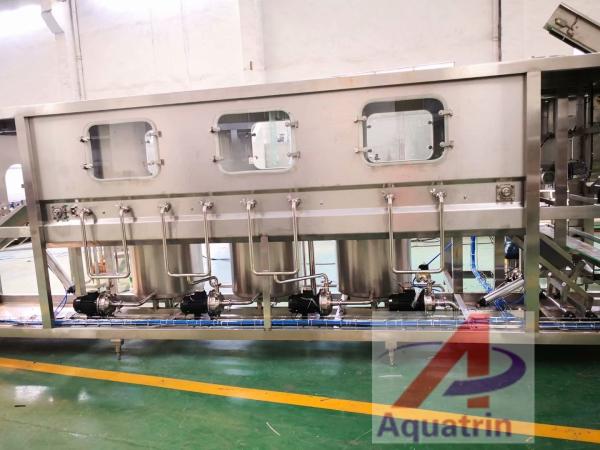

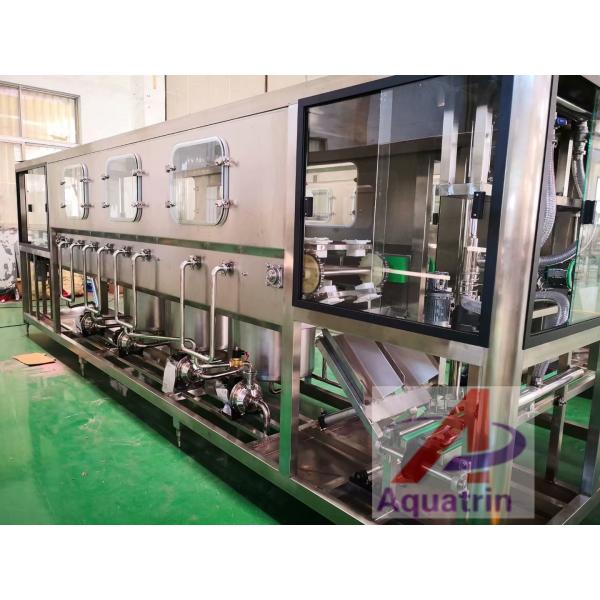

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Containers and Specifications
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line		 Mineral Water /
Pure Water
Material Shape Filling volume Filling Type
PC / PET Round or Square 3 - 5 Gallon Gravity filling
Normal temperature
Adjustable Specifications
of
Bottle Type		 Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification Voltage:380V±5%, 3phase; Frequency:50HZ±1%

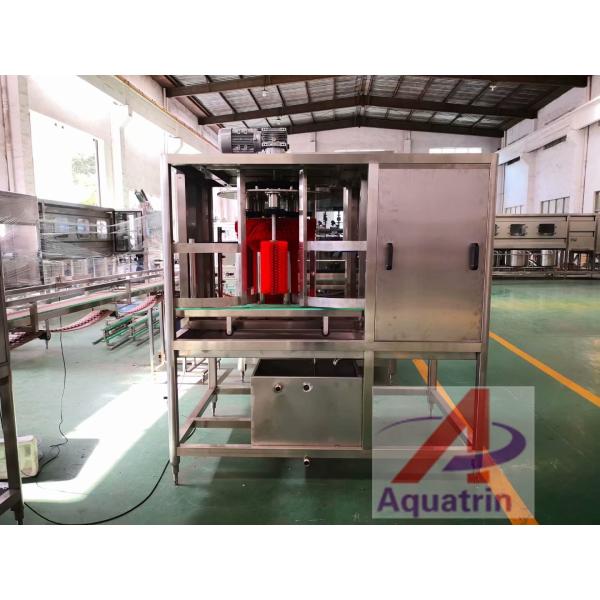

Outside washing machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC. 		20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine Main Machine Features.
1/Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.

2/The thickness of the stainless steel plate which used for 600bph is 3mm.

3/Tank and the heating pipe in tank are removable which become more clean sanitation.
Filling Part Features.
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

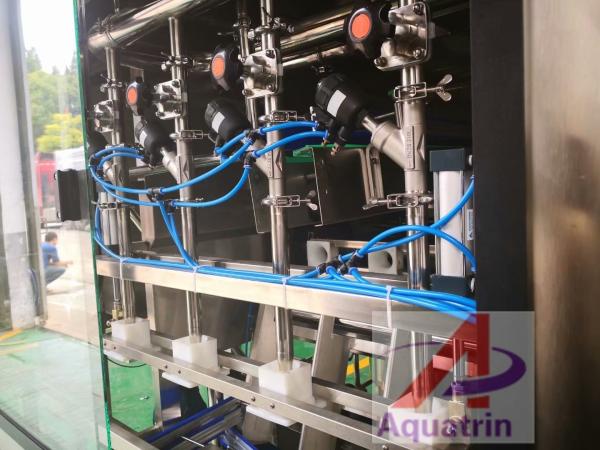

2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.		 20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine
20 Liter 3 4 5 Gallon Water Bottle Pail Bucket Barrel Water Filling Machine Capping Parts.
1/Liquid level difference is controlled in 1cm.

2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, Air TAC pneumatic component.

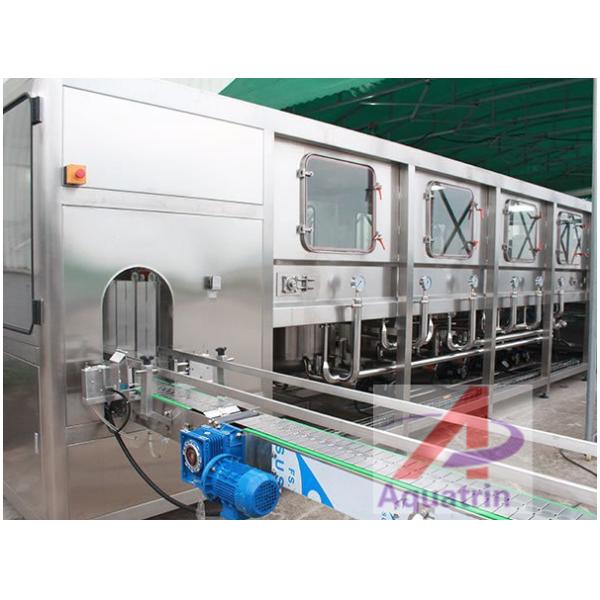

Flat Conveyor.

The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.
