PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity
PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity
PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity
PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Machine name :
Water Filling Machine

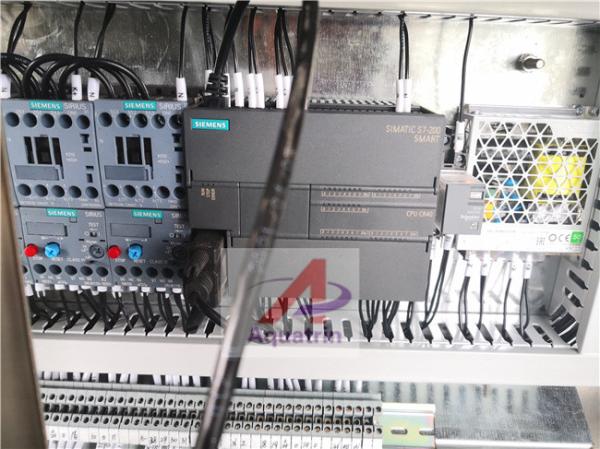

Control system :
PLC (Siemens, Mitsubishi)
Bottle type :
Round Bottle
Processing Types :
Gravity filling type
Machine type :
3 in 1
Machinery Capacity :
12000BPH
Description

Water Filling Machine PET Plastic Bottle 200ml-2000ml

Bottled Water Filling Line3 in 1 filling Machinery can provide whole producing and packaging solutions for water,pure water,mineral water,spring water,drinking water etc. Equipment Advantage:

1. It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor.it is easier and more simple to change over bottle size.

2. Adopt neck handling technology to convey bottles.there is no need to adjust the height of equipment and only need to change some spare parts.

3. By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is stable,bottle changing is easier.

4. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. 5.High speed and mass flow filling valve ensures the high filling speed and exact fluid level.

6.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

Project
 Water Bottling Machine
Model 14-12-4 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12
Capacity (BPH) 3000-5000 6000-8000 8000-12000 13000-15000 16000-18000 20000-24000
Applicable bottle
φ=50-115 H=160-330 (200ML TO 2000ML) round or square
Air press(Mpa)
0.3-0.7
Power supply 4.4 KW 4.4 KW 5.2 KW 6.2 KW 7.8 KW 10 KW
Overall dimension 2500×1880×2300 2800×2150×2300 3100×2450×2300 3880×2800×2500 4100×3000×2500 4500×3300×2250
Weight (KG) 3200 4500 6500 7500 8500 9000
Spring water bottle water production line/PET water bottling machine/3 In 1 bottle filling capping machine Equipment Configuration
Drawing
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.

Water treatment system.

1 Raw water tank + Raw water pump 2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter 3 Reverse Osmosis (one level) 4 UV sterilizer 5 Finished water tank + Pure water pump 1/Stainless steel high pressure film shell 2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system 3/Online type pressure auto self-protection device 4/Online type electricity indicator (with stable compensation) 5/System safe protecting and alarm system 6/System frame

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

Blow molding system.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

Automatic sleeve labeling machine

. 1/Heat shrink sleeve labeling machine 2/OPP Hot melt labeling machine 3/PVC label stick labeling machine It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

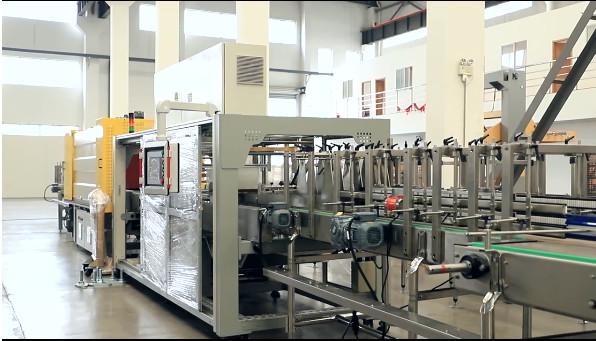

PE film packaging machine.

1/PE film shrink wrapping machine 2/Half-tray shrink wrapping machine 3/Carton box packaging machine It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

Our certification

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

PLC 12000BPH Bottled Water Filling Machine Production Plant Water Gravity

FAQ
Q1:What's the warranty of the quality if we buy your machines?
A1:We offer a one-year warranty service.

Q2: Do you provide customized service?
A2: Yes. We will customize the machine according to your needs, material, power, filling types, kinds of the bottles and so on.

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineers to your side as soon as you get all your machines, for testing and teaching your technicians how to run the machines.
