PET Plastic Bottle Drinking Water Filling Machine Production Line
PET Plastic Bottle Drinking Water Filling Machine Production Line
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
Jiangsu, China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Feature :
high capacity,advanced technology
Advantage :
Automatic Working
Bottle type :
PET Plastic Bottle
Dimension(L*W*H) :
Dimension(L*W*H): 2000*1050*1600
Name :
Drinking Water Filling Machine
Description

Automatic PET Plastic Bottle Drinking Water Filling Machine / Production Line For Sale

Product Description
The machine is used for producing drinking water in PET bottle, such as pure water, mineral water,natural water etc.Adopting hanging-neck technology,it can transfer the plastic bottle more stably and faster. One machine can finish washing bottle, filling and capping three processes, sanitary and high-efficiency,High-quality filling valve guarantee the filling level precision.
MACHINE SPECIFICATION
Model
CGF8-8-3
CGF14-12-5
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
CGF50-50-15
Capacity(B/h)
2000
5000
8000
12000
15000
18000
24000
Floor Area
300m2
400m2
600m2
1000m2
2000m2
2500m2
3500m2
Total Power
100KVA
100KVA
200KVA
300KVA
450KVA
500KVA
600KVA
Workers
8
8
6
6
6
6
6
Detailed Images
PET Plastic Bottle Drinking Water Filling Machine Production Line
Washing Part--
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
PET Plastic Bottle Drinking Water Filling Machine Production Line

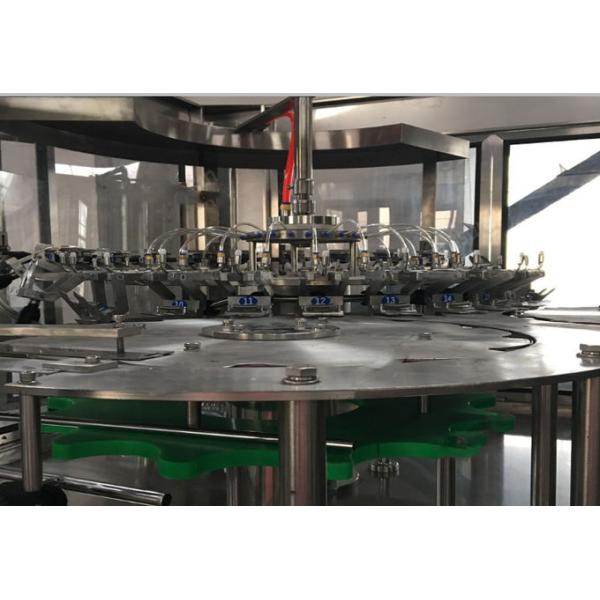

Filling Part--
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Part--

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Air Conveyor System
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.
Belt Conveyor System
according to the requirements of different users, different production capacity, tank type, a combination of different ways of conveying module, motor control mode, with great flexibility.
Automatic PVC shrink labeling machine
The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.
Blow Dryer
This machine installed after the filling machine, In order to dry the bottles which outside with some water drop, This machine is used to removing the water outside the bottle surface, the blowing capacity can be adjusted through the button.
Automatic PE film shrink wrapping machine
(1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4 Small Package:2*2,2*3
PET bottle making machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
