Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Feature: :
Washing filling capping 3-in-1
Quality: :
Easy operation and maintain
Filling Accuracy: :
±5mm
Keywords: :
5 gallon water filling machine
Barrel size: :
270x490mm
Main Material: :
SUS304/SUS316
Description
Product Description

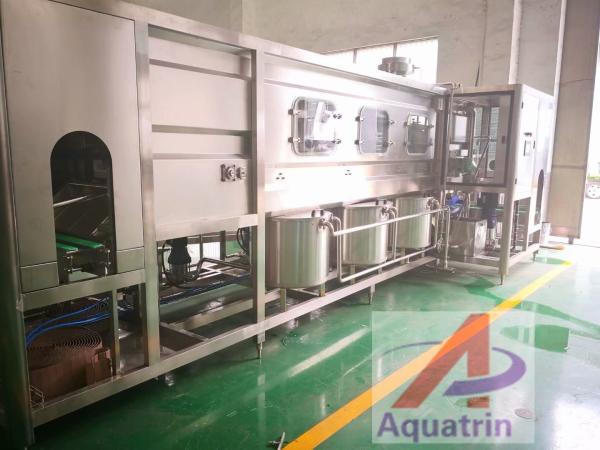

3 gallon - 5 Gallon(18.9L) Filling Line
5 gallon water production line include Auto-Decapper, External bottle brushing, Internal bottle brushing, Inside sterilizer, Rinsing, Filling, Capping, Neck label shrinker, Auto bag machine, Pallitizer, enabling full automatic intelligent production.
This line is mainly used for filling pure water or mineral water of 3 - 5 gallon bottle.

Product Description:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine


Main technical specifications:

Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
Filling heads
1
2
3
5
6
Volume(L)
18.9
18.9
18.9
18.9
18.9
Capacity(b/h)
100
300
450
600
900
Gas consumption (m3/min)
0.37
0.6
0.8
1
1.5
Moto power (kw)
1.38
3.8
5.6
7.5
9.75
Weight(kg)
680
1500
2100
3000
3500
Size(W*L*H)(m)
0.5*4.0*1.5
0.9*4.0*1.5
1.3*4.0*1.5
1.8*4.0*1.5
2.4*4.0*1.5

1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

Complete Production Line
De-capping machine
Water treatment system refers to the measures taken to make the water quality meet certain use standards. The physical characteristics of water, such as temperature, color, transparency, odor and taste, are filtered or treated so that water can be used directly for drinking or other purposes.
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines
External brusher
Water treatment system refers to the measures taken to make the water quality meet certain use standards. The physical characteristics of water, such as temperature, color, transparency, odor and taste, are filtered or treated so that water can be used directly for drinking or other purposes.

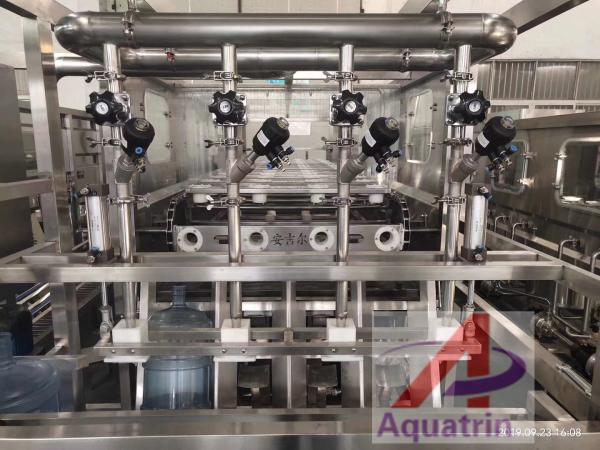

Inside washing-filling-capping machine
Working processing:
- Hot alkaline water rinsing
- Dripping
- Detergen water filling
- Dripping
- Recycling water rinsing
- Dripping
- Pure water rinsing
- Filling
- Capping
- Customize
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines
Water Treatment System
Water treatment system refers to the measures taken to make the water quality meet certain use standards. The physical characteristics of water, such as temperature, color, transparency, odor and taste, are filtered or treated so that water can be used directly for drinking or other purposes.
Automatic Sleeve Shrink Labeling Machine
1. Shrink Labeling Machine For Sleeve adpots PLC programmable controller,imported servo motor,servo driver, frequency converter and transducer.
2. Shrink Labeling Machine For Sleeve adopts the positioning module to ensure the casting label precise,rapid and stable.
3. Our Shrink Labeling Machine For Sleeve not only has a highly precise position for casting label, but also withstand the perfect shape of the bottle after shrinkage.
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines
Automatic Bagging machine
- Automatic bagging machine adopts aluminum alloy knife with teflon coating and anti-adhesion.
- High packing efficiency.
PET Bottle Blow Molding System
1). Stable performance with advanced PLC.
2). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
3). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could
adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

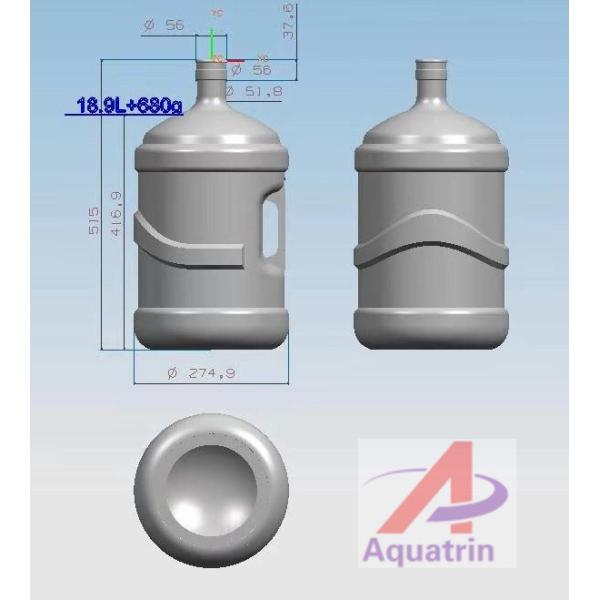

Machnical Drawing

1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines

Electric Configuration
Item
Product name
Brand
Origin
1
Automatic switch
Meilarila
France
2
AC contactor
Schneider
France
3
PLC
Mitsubishi
Japan
4
Electric switch
Schneider
France
5
Pump
CNP
China
6
Cylinder of principal axis
Airtac
Taiwan
7
Cylinder of up and down
Airtac
Taiwan
8
Cylinder of cap press
Airtac
Taiwan
9
Cylinder of jar push
Airtac
Taiwan
10
Cylinder of filling valve
Airtac
Taiwan
11
Air pressure processing system
Airtac
Taiwan
12
Air pipe fittings
Airtac
Taiwan
13
Nozzle
Domestic
Shanghai
14
Chain
SUS304
China
15
The valve of water inlet
SUS304
China
16
Filling valve
SUS304
China
1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines1.38kw SUS316 Filling Capping Machine 18.9L Bottle Water Making Machines
