Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
capacity :
100-1200BPH
Dimension(L*W*H): :
4470*1800*1100mm
Usage: :
Beverage Filling Packaging
suitable bottle: :
PET bottle,plastic bottle
Key Selling Points: :
High Productivity
Automatic grade :
Automatic,Semi-Automatic
Description
Product Description

Factory Hot Sale Drinking Mineral Bottling PET Bottle High Speed Water Manual Filling Machine

Product details

suitable bottle PET bottle,plastic bottle
Usage Beverage Filling Packaging
Washing heads 18
Filling heads 18
Capping heads 6
Diameter of bottle 55-110mm
Height of bottle 150-310mm
Suitable cap Plastic screw cap
Weight 1500kg
Main motor power 1.2kw
Product Keywords drinking mineral water bottling machine,high speed water filling machine,manual filling machine

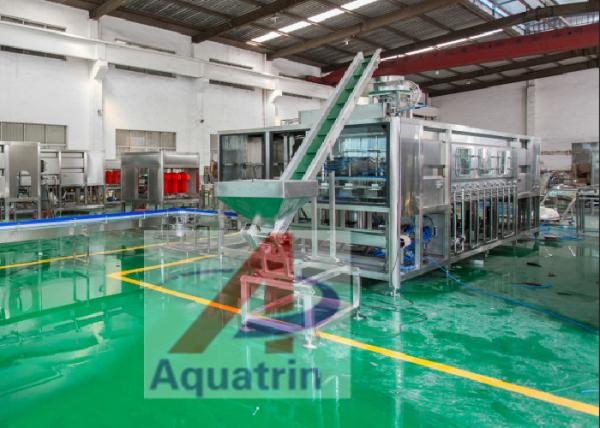

CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.

1. Automatic Washing

2. Automatic Filling
3. Automatic Capping
4. Water Treatment Plant
5. Removing cap machine

6. Inside&Outside Brushing Machine
7. Date and Batch Coding Machine
8. Sleeve Shrink Labeling Machine
9. PET Bottle Blowing System
10. Compressor Station





5 Gallon Water filling machine is designed for big bottle filling from 3 gallon to 5 gallon .

Water Bottle Filling Machine/Water Bottle Filler
Model
Full Automatic(PLC Control)
Capacity
100 to 1200 Bottles Per Hour
Bottle Type
PET Bottle/PE Bottle
Volume 10L-20L/3-5 Gallon
Filling Liquid
Mineral water/Pure water

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Automatic Bottle Loading System

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

  • Washing capacity: 1200 bottles per hour

  • Washing station: 8pcs

  • Washing stops: 16pcs

  • Each washing stops washing time: 18 seconnds

  • Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

  • Washing pump 4pcs fixed with each water tank.

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

  • Filling Nozzle: 8pcs SUS304

  • Filling Capacity: 1200 bottle per hour

  • Suitable to bottle dimension: 3,5,6 gallon bottle

  • Drive motor power 2.2kw 1pc

  • Dimension: 1800×1200×2500mm

  • Weight: 600kg

Feature:

  • Gravity style filling nozzle, high filling precision

  • Under PLC control, full-automatic working

  • SUS304 water bowl, inside polish

  • SUS304pipeline, valve and other contact parts

  • Emergency stop button

  • Automatic alarm system when accident

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

No 1. Cap Decapper

Model: DP-2

Function: to remove the caps that leave the 5gallon bottle that after used Technical Parameter

  • Decapping heads: 2pcs

  • Decapping Capacity: max 1200 bottle per hour

  • Machine size: 800×500×1750mm Machine

  • Weight: 150Kg

  • Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

No 2. Brush External Bottle Washer

Model: BEW-2T

Function: clean the outside body of 5 gallon bottles with brush and water Technical Parameter

  • Production capacity: 1200bottle per hour

  • Brushing washing time: 8 Seconds

  • Water tank: 1pc with volume 120liter

  • Drive motor power: 0.75KW

  • Washing pump: 2pcs, each washing pump power: 0.37kw

  • Dimension:2000×1250×1750mm

  • Weight: 700kg

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

Model: SL-30E 5 gallon labeling machine

Main Parameter of Automatic Sleeve Labeling Inserting Machine:

Model SL-30E
Labeling Speed ( capacity) Max1,600 bottle per hour
Suitable to Bottle Diameter 3,5,6gallon bottle
Suitable to Bottle Height (mm) Max. 450
Suitable to bottle diameter(mm) Max.270
Suitable to Label length(mm) 35~100mm
Label thickness 0.035~0.08mm
Paper pipe interior diameter 3~10mm adjustable
Power 2.2kw
Machine Dimension 1500(L)* 950(W) * 2000(H) mm
Weight 350kgs

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml

PET Bottle 1200BPH 1.2kw Water Manual Filling Machine Mineral 2000ml
