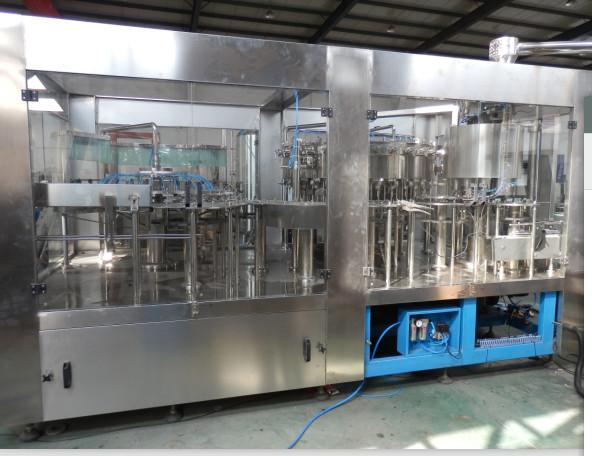

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
DGCF
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
Warranty: :
2 years
Filling Speed: :
1000~24000BPH
Core Components: :
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Bottle diameter: :
50-100mm
machine type: :
washing filling capping 3-in-1
Description

Product Application

CSD Carbonated Soft Drink/Beverage Bottle Washing Filling Capping Machine Production Line/Plant/Monoblock
Automatic factory supply soft drink making machine to make soft drinks ,soda machine
beverage filling machine is used for PET bottles ,and carbonated beverage of special equipment, unique clamping bottle filling technology, frequency control, automatic tank level control, equalpressure filling , etc. It adopts constant pressure into the fluid, and match the mixer perfectly, to avoid boiling, material inequality of production problems, contact with the material part of the materials are stainless steel 304 . pipe system control components are imported auxiliary equipment.

Technical parameters

Model

DCGF24-24-6

capacity(500ml)

6000BPH(500ML)

Washing heads


24

Filling heads

24

Capping heads

6

suitable bottle

PET bottle,plastic bottle

Diameter ofbottle

φ55-110mm

Height of bottle

150-310mm

Weight

5000kg

Main motor power

2.2kw

Details Images

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

Washing Heads

More than 90% parts of the machine are made of high quality stainless steel, and parts contacting materials are made of 304 or 316L, which are in line with international health standards.

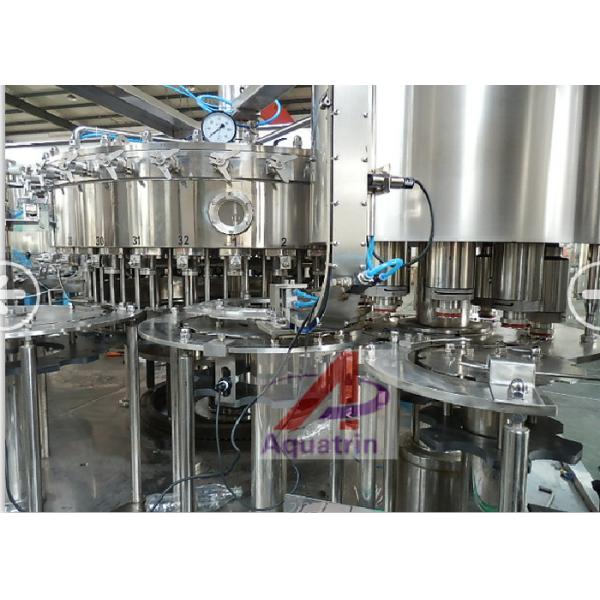

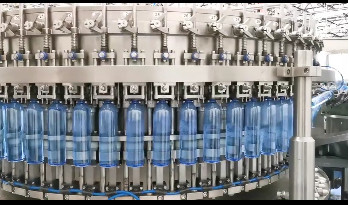

Filling Heads

The control system adopts imported electrical components, the working procedure adopts switch control, the operation method is simple and convenient;Most of the driving parts are controlled by high quality and precise pneumatic components, which have the characteristics of stable performance, safe operation, reliable measurement and precision, etc.

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine


Capping Heads

This machine is suitable for filling various carbonated beverages like Coca-Cola Sprite fanta pre-mixed cocktail, etc. According to different materials of bottles, different types of equipment are provided.
2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

Control system

S/N

Name

Brand

country

1

Main motor

ABB

Switzerland

2

Inverter

MITSUBISHI

Japan

3

PLC

OMRON

Japan

4

Touch screen

MITSUBISHI

Japan

5

Contactor

SCHNEIDER

France

6

Thermo- relay

SCHNEIDER

France

7

Air-break switch

SCHNEIDER

France

8

Proximity switch

TURCK

USA

9

Photoelectric switch

BANNER

USA

10

Air circuit system

SMC

Japan

11

Water pump

Southern

China

Related products

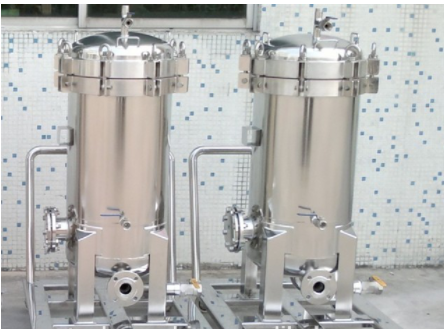

Syrup Filter

It applies to the filtration of water and various viscous liquids.It is designed for continuous online filtration to remove impurities on the outer surface of filter screen via highly-efficient mechanical scrapping.

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

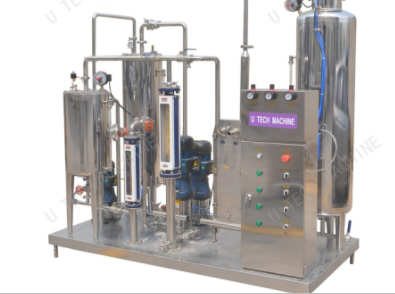

QHS Series Drink Mixer

The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry drink,fermented drink and other drinks. QHS series mixer is designed and made for improving the proportion of water ,syrup and carbon dioxide.It adopts foreign advanced technology-static mixer to lighten water layer,increase carbonizing time,assure mixing result and deoying.

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

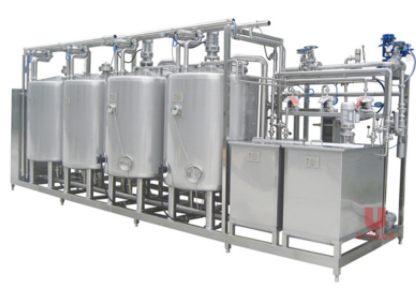

Automatic CIP Cleaning System

1.Auto-flow control for the cleaning solution.
2.Automatically regulate the temperature of the cleaning liquid.
3.Auto-compensate for the inside tank liquid level.
4.Automatically-compensation for the acid and alkali concentration.
5.Auto transfer from one cleaning liquid to another.
6. Auto alarm-device system .

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

Water Treatment System

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine

2.2kw 24000BPH Soft Drink Filling Equipment Dia 50mm Beverage Bottle Filling Machine
