1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components.

2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine.
3. Spring type rinsing catcher can wash both inside and outside of the bottle.
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling.
5. Magnetic powered cap device ensures tightness and prevents damage of the caps.
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage.
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements.
9. Low overall machine noise.

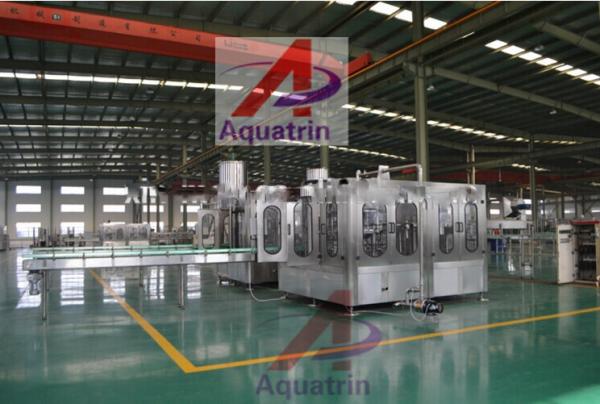

Production Line Flow

Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,

Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding.
4.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
5.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.

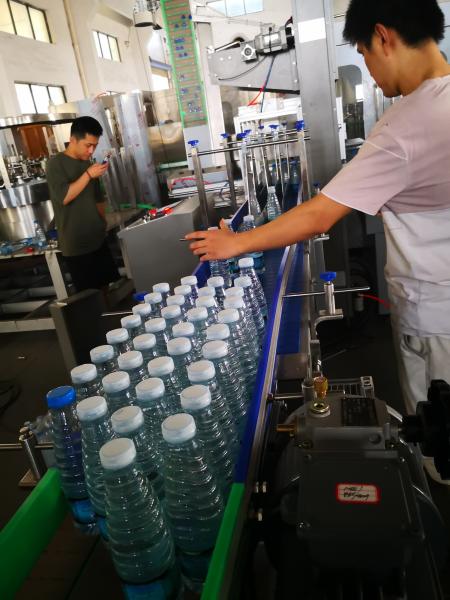

Washing, Filling, Capping 3-in-1 Machine For Filling Water

Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.

Rinsing Parts

Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

Filling parts

The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.

Capping Parts

The capping machine can cap different kinds of bottles, it is reliable, easy to operate and easy to maintain. It are widely used in wines, food, drinks, medicine, chemicals, reagents, pesticides and automatic packing etc. It is the most popular rotary screw automatic folding capper.

Automatic Sleeve labeling MachineAutomatic Sleeve labeling Machine

1.The hot sale bottle neck automatic heat shrink sleeve label machine is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 2. The hot sale bottle neck automatic heat shrink sleeve label machine sleeve is opened by pulling it over a mandrel, a servomotor-controlled cutter cuts the sleeves exactly to the set length. After that, the under-brush pulls the sleeves over the container. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 3. Depending on the container shape and the sleeve size, an optional positioning brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 4.Optional hot-air nozzles shrink and pre-position the sleeves.After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.

Automatic shrink wrap packing machine Automatic shrink wrap packing machine

In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine. Function: It is suitable for the packaging requirements of cargo storage, transportation and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electric castings, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
