Description of 5 gallon washing filling capping machine

For washing unit, multiple injection of washing liquid and bleaching liquid is used to achieve the purpose of washing and
sterilizing.
For filling unit, the filling process introduces PLC control; the ingenious filling level inspector ensures the accuracy of filling volume.

For capping unit, the barrel caps can be automatic capped, and equipped with water spraying device to sterilize caps of bottles in order to ensure caps are aseptic and healthy.

Fillex 5 gallon water filling machine 300BPH

5 gallon water washing filling machine 450 BPH
5 gallon water filling capping machine 600 BPH
5 gallon barrel water filling line 900 BPH

Product Paramenters

5 Gallon Washing Filling Capping Machine
Equipment Type		Automatic
Bottle Type		PC / PET round or square bottle Volume : 3 - 5 Gallon Size of Barrel : ф276×490mm
Output		up to 2,000 bph
Your product		Mineral Water / Pure Water
Certificates		CE / SGS / ISO 9001

5 Gallon Water Filling Capping Machine
Model	Capacity	Washing Colum	Washing Station
FL-300	300	2	13
FL-450	450	3	13
FL-600	600	4	15
FL-900	900	6	18

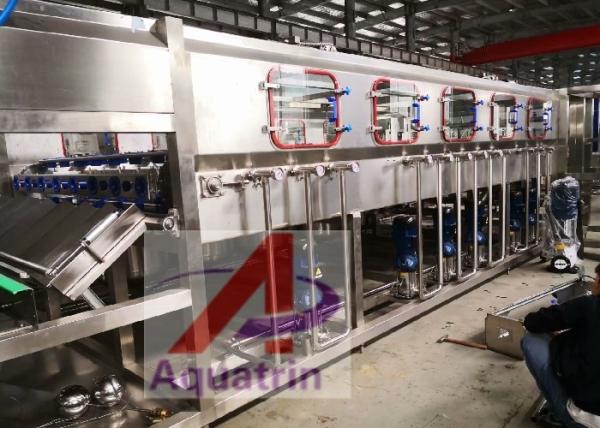

Automatic Bottle Loading System

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

• Washing capacity: 1200 bottles per hour

• Washing station: 8pcs

• Washing stops: 16pcs

• Each washing stops washing time: 18 seconnds

• Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

• Washing pump 4pcs fixed with each water tank.

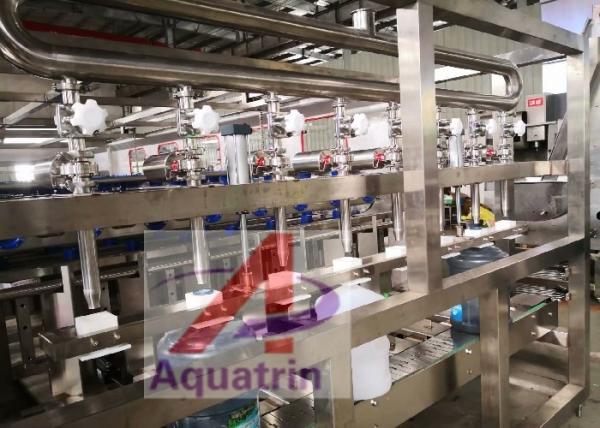

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

• Filling Nozzle: 8pcs SUS304

• Filling Capacity: 1200 bottle per hour

• Suitable to bottle dimension: 3,5,6 gallon bottle

• Drive motor power 2.2kw 1pc

• Dimension: 1800×1200×2500mm

• Weight: 600kg

Feature:

• Gravity style filling nozzle, high filling precision

• Under PLC control, full-automatic working

• SUS304 water bowl, inside polish

• SUS304pipeline, valve and other contact parts

• Emergency stop button

• Automatic alarm system when accident

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

No 1. Cap Decapper

Model: DP-2

Function: to remove the caps that leave the 5gallon bottle that after used Technical Parameter

• Decapping heads: 2pcs

• Decapping Capacity: max 1200 bottle per hour

• Machine size: 800×500×1750mm Machine

• Weight: 150Kg

• Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa

No 2. Brush External Bottle Washer

Model: BEW-2T

Function: clean the outside body of 5 gallon bottles with brush and water Technical Parameter

• Production capacity: 1200bottle per hour

• Brushing washing time: 8 Seconds

• Water tank: 1pc with volume 120liter

• Drive motor power: 0.75KW

• Washing pump: 2pcs, each washing pump power: 0.37kw

• Dimension:2000×1250×1750mm

• Weight: 700kg

Model: SL-30E 5 gallon labeling machine

Main Parameter of Automatic Sleeve Labeling Inserting Machine:
