Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Filling Accuracy :
99.9%
Model :
24-24-8
Weight :
3500KG
Control system :
PLC (Siemens, Mitsubishi)
Voltage :
220V/380V
Automatic grade :
Automatic,Semi-Automatic
Description
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
Normal CGF 8-8-3 CGF 14-12-4 CGF 18-18-6 CGF 24-24-8 CGF 32-32-10 CGF 40-40-12
Capacity bottle/500ml/hour 2000-3000 3000-4000 6000-8000 8000-10000 12000-15000 16000-18000
Floor Area 300m2 400m2 600m2 1000m2 2000m2 2500m2
Total Power 100KVA 100KVA 200KVA 300KVA 450KVA 500KVA
Workers 8 8 6 6 6 6
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF

Water Filling Machine 3 in 1 pictures:

2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF

Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,

Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding.
4.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
5.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.

2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF

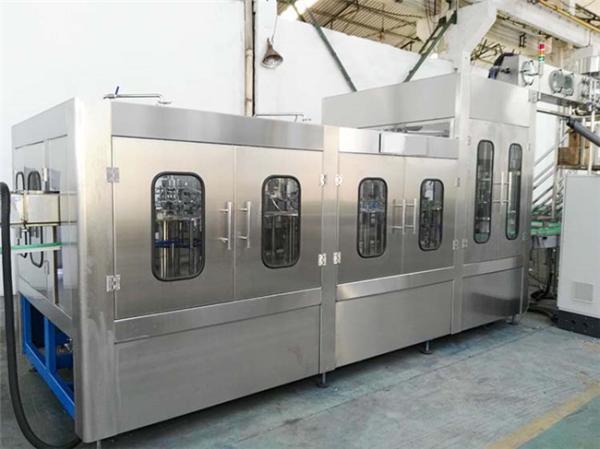

Washing, Filling, Capping 3-in-1 Machine For Filling Water

Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.


2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF

Laser Date Printer
This machine combines advanced laser galvanometer marking technology, imported RF excitation and sealed CO2 laser and real-time marking software control technology. It uses laser marking technology on the production line to mark and mark fast moving products. The writing is permanently erasable and can meet the needs of various production lines. It is suitable for online marking of paper, plastic, non-metallic materials and painted metal packaging materials.
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
Automatic Sleeve labeling Machine
1.The hot sale bottle neck automatic heat shrink sleeve label machine is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 2. The hot sale bottle neck automatic heat shrink sleeve label machine sleeve is opened by pulling it over a mandrel, a servomotor-controlled cutter cuts the sleeves exactly to the set length. After that, the under-brush pulls the sleeves over the container. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 3. Depending on the container shape and the sleeve size, an optional positioning brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 4.Optional hot-air nozzles shrink and pre-position the sleeves.After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
Automatic shrink wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine. Function: It is suitable for the packaging requirements of cargo storage, transportation and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electric castings, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
2000m2 450KVA Automatic Water Bottle Filling Machine A To Z ISO CGF
