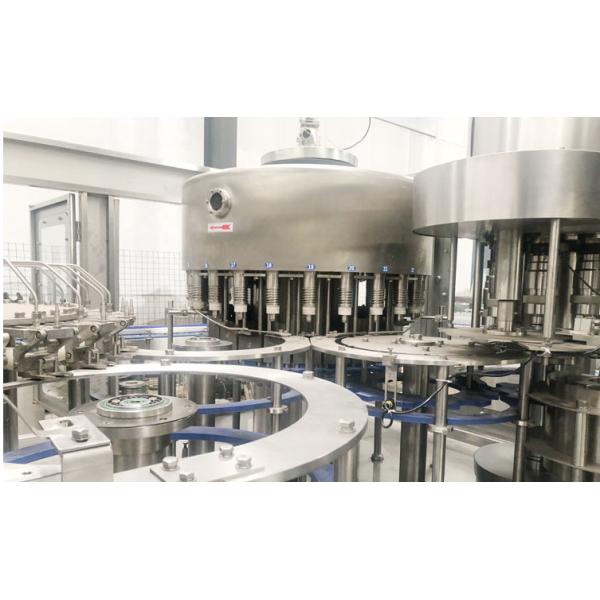

Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
CE ISO9001 SGS
Place of Origin :
Jiangsu, China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Condition :
New
Advantage :
High Efficiency
Structure :
Rotary
Material :
Stainlessl steel 304
Description
Complete small bottled pure mineral water processing bottling filling machine for sale
Water is source of the life. Water includes natural spring water and purified water. How can you get the drinking water? How can you make bottles? How can you package and design your products? We can supply complete solution for water filling plant ,including the blow moulding machine, water treatment system, washing filling capping machine, code sprayer, automatic labeling machine, automatic packing machine, automatic palletizer system. Baiji Machinery, professional in liquid filling and packaging, will always provide you the best solutions for your projects.
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Conveyor
Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine
304 stainless steel washing pumps
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Filler
High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling
capper station
Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min
Machine Parameter
Model
CGF 14-12-5
CGF 18-18-6
CGF 24-24-8
CGF 32-32-8
Station Number
Washing 14
Washing 18
Washing 24
Washing 32
Filling 12
Filling 18
Filling 24
Filling 32
Capping 5
Capping 6
Capping 8
Capping 8
Production Capacity
5000BPH(500ml)
8000BPH(500ml)
12000BPH(500ml)
15000BPH(500ml)
Way Of Filling
Gravity Filling
Bottle Size
Diameterφ50－φ105,Height165－320
Pressure
0.7Mpa
Air Consumption
0.8M3/ min
Pressure Of Washing
0.2-0.25Mpa
Washing Water
1.0Ton/hour
1.2Ton/hour
1.5Ton/hour
2.0Ton/hour
Total Power
1.5KW
2.2KW
2.2KW
3.0KW
Dimensions(MM)
2250*1650*2650
2850*2150*2750
2880*2180*2750
3380*2580*2750
Machine Weight
3500KG
3500KG
3500KG
3500KG
Rotary 2.2KW Automatic Water Bottle Filling Machine SUS304 0.8M3/ Min

-Water treatment
-Blown Moulding Machine
Automatic PET Bottle Blow Moulding Machine with Capacity 1000-1 2,000BPH.
-Labeling Machine
It is suitable for various food and beverage industries such as juice, tea beverage, dairy products, purified water, condiments, beer, sports drinks, etc.
-Film Wrap and Packing Machine Specially designed and manufactured for the packing requirements of drinks (pure water, beverage fruit juice, and milk product)
