Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Name :
5gallon filling machine
Core Components: :
Motor, Pressure vessel, Pump, PLC
Certificate :
CE & ISO9001
Control :
PLC touch screewn control
Dimension(L*W*H) :
6600*3500*2170mm
Package type :
5 gallon jar / barrel
Description
Main Features.
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products wite brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Product process
1/Auto Bottle Uploader 4/ Inside Brusher
2/ Decapping Machine 5/Rinsing Filling Capping Machine
3/ Outside Brusher 6/ Light Inspector+Cap Seal Shrink Machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Machine Parameter
Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Number of filling heads 1 2 3 4 8 12 16
Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size (mm) φ270×490 φ270×490 φ270×490
φ270×490

 φ270×490 φ270×490 φ270×490
Production capacity (b/n) 100-120 200-240 300-400 600 900 1200 2000
Gas pressure (Mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Details Images
Water treatment system
Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone generator, finished water tank

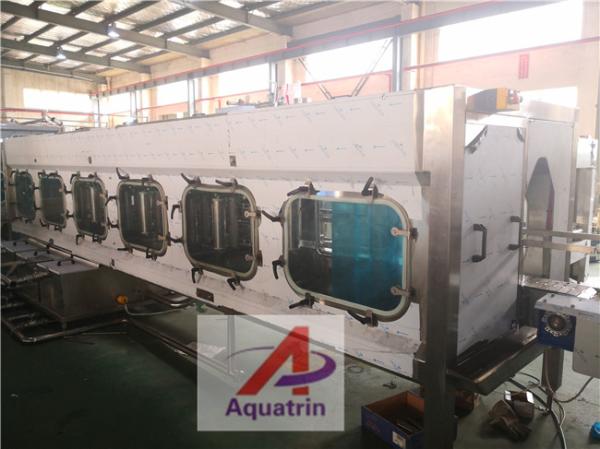

Barrel outside washing machine
Automatic barrel loading machine
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Filling part
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Capping part
Automatic Mineral Water Production Line 5 Gallon Barrel Mineral Water Filling Machine
Shrink sleeve labeling machine
Automatic bagging machine
