Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Function :
Washing Filling Capping
Capacity :
12000BPH
Application :
Beverage, Mineral Water/Soft Drink/Carbonated/Soda/Beer, Drin
Processing Types :
Automatic Bottle Filling Line
Weight :
4500kg
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field inst
Description
Water Lines.
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.

With over 20 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduced the weight of water bottles while retaining their durability and expanding design opportunities.
Complete Line
PET Bottle Water Filling Line.
A complete water line solution from XINMAO beverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.
PET Bottle Water Filling Line Layout.
This series of equipment is used for the production of non-gas beverages such as mineral water and purified water in polyester bottles. It can be washed, filled and capped on one machine. Introducing the latest technology from Japan and Italy, adopting the principle of pressure-type fixed liquid level filling, fast filling speed, stable liquid level control, and no dripping.
Final Products
What can be produced?
Applicable products: pure water, mineral water, mountain spring water, etc. Applicable container: PET bottles of various capacities and shapes Filling system: gravity filling Production capacity: 1000 bottles/hour-36000 bottles/hour
Details Images
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Automatic Rotary Type PET bottle Washing Filling Capping 3 in 1 Machine.
●Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottleneck way.
●Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
●Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
●The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.

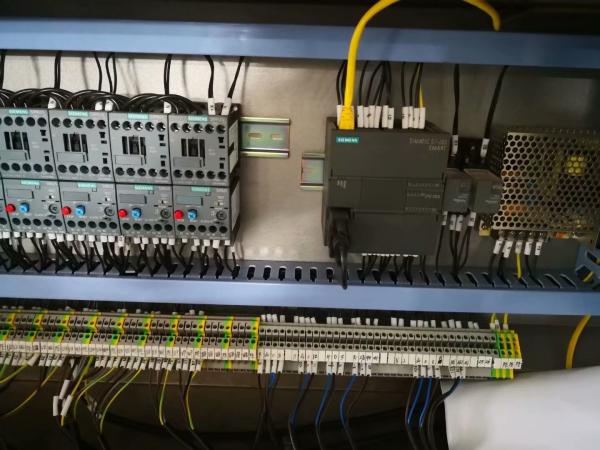

●Main PLC and frequency changer are used famous brand, such as Mitsubishi and Omron etc.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Washing Heads.
* Adopting the direct connection technology between the air duct and the bottle feeding wheel, the bottle feeding screw and conveyor chain are eliminated, and the bottle shape is simple and easy to change. * Bottle transmission adopts the bottleneck clamping technology throughout the whole process. Changing the bottle shape does not need to adjust the height of the equipment. It only needs to replace the arc guide plate, dial wheel and other nylon parts related to the bottle diameter. * The high-speed line adopts bottle clamp transmission technology, the bottle shape changes more freely, and the internal working surface of the unit is more concise.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Filling Heads.
* The three-in-one unit completes the three processes of bottle washing, filling and capping at one time, with little bottle wear, accurate and stable transmission, and convenient bottle type replacement. * The specially designed all-stainless steel bottle washer bottle clamp is sturdy and durable, and does not touch the threaded part of the bottle mouth to avoid secondary pollution of the bottle mouth. * High-speed and large-flow gravity filling valve, fast filling speed, accurate liquid level without liquid loss.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Capping Heads.
* All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which meet the national food hygiene standards. * The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle conveyor chain is not required to change the bottle shape.

Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,

Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding.
4.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
5.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.

Automatic Drinking Water Bottle Filling Automatic Packing Machine

Washing, Filling, Capping 3-in-1 Machine For Filling Water

Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.


Automatic Drinking Water Bottle Filling Automatic Packing Machine


Laser Date Printer
This machine combines advanced laser galvanometer marking technology, imported RF excitation and sealed CO2 laser and real-time marking software control technology. It uses laser marking technology on the production line to mark and mark fast moving products. The writing is permanently erasable and can meet the needs of various production lines. It is suitable for online marking of paper, plastic, non-metallic materials and painted metal packaging materials.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Automatic Sleeve labeling MachineAutomatic Sleeve labeling Machine
1.The hot sale bottle neck automatic heat shrink sleeve label machine is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 2. The hot sale bottle neck automatic heat shrink sleeve label machine sleeve is opened by pulling it over a mandrel, a servomotor-controlled cutter cuts the sleeves exactly to the set length. After that, the under-brush pulls the sleeves over the container. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 3. Depending on the container shape and the sleeve size, an optional positioning brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 4.Optional hot-air nozzles shrink and pre-position the sleeves.After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Automatic shrink wrap packing machine Automatic shrink wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine. Function: It is suitable for the packaging requirements of cargo storage, transportation and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electric castings, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
Automatic Drinking Water Bottle Filling Automatic Packing Machine
Automatic Drinking Water Bottle Filling Automatic Packing Machine
