Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Name :
5gallon filling machine
Warranty :
2 years
After Warranty Service :
Video technical support, Online support, Spare parts, Field maint
Packaging Type :
Bottles, Barrel
Function :
Bottle washing filling capping
Factory layout :
Free design
Description
Q1. What is the application of this machine?

A1:This QGF series barreled water filling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto wear lid and capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.

Full Automatic 20 Liter Bottled Water Packing 5Gallon Water Filling MachineFull Automatic 20 Liter Bottled Water Packing 5Gallon Water Filling Machine

Main Technology Parameter:

Model QGF-120 QGF-240 QGF-450 QGF-600 QGF-900 QGF-1200
Filling Heads 1 2 3 4 6 8
Volume(L) 18.9
Barrel Size(mm) φ270×490
capacity(b/h) 120-150 240-300 400-450 500-600 700-800 1000-1200
Gas Pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas Consumption(m 3 /min) 0.37 0.6 0.8 1 1.2 1.5
Moto Power(kw) 1.38 1.75 3.8 7.5 9 13.5
Rated Voltage(V) 380V/50Hz
Weight(kg) 680 1200 1600 2000 3500 4500

Details Images
Water treatment system
Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone generator, finished water tank

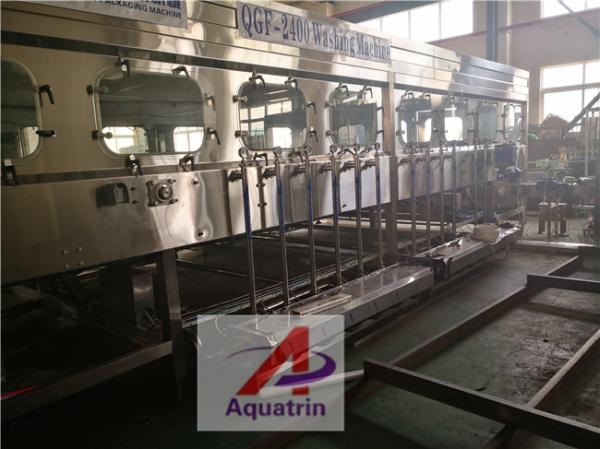

Barrel outside washing machine
Automatic barrel loading machine
Full Automatic 20 Liter Bottled Water Packing 5Gallon Water Filling Machine

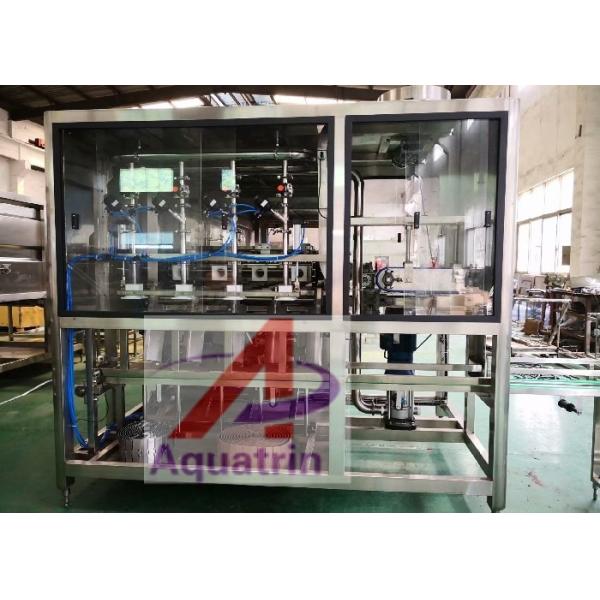

Filling part
Full Automatic 20 Liter Bottled Water Packing 5Gallon Water Filling Machine
Capping part
Full Automatic 20 Liter Bottled Water Packing 5Gallon Water Filling Machine
Shrink sleeve labeling machine

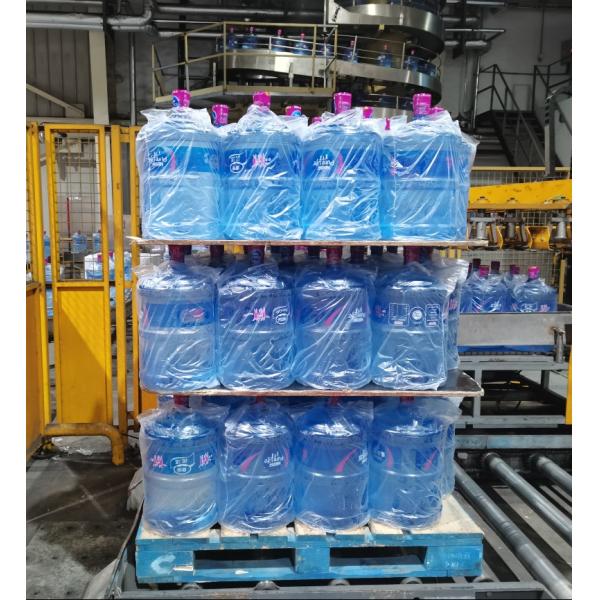

Automatic bagging machine
