Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Name :
5gallon filling machine
Warranty: :
2 years
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maint
Packaging Type: :
Bottles, Barrel
Machinery Capacity: :
500BPH, 100BPH, 200BPH
Core Components: :
Motor, Pressure vessel, Pump, PLC
Description

Full Automatic Barrel Production Line

The filling line special for 3-5 gallons barreled drinking water,with type of QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The capping machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Product Description
Containers and Specifications
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line
PH≥4.6
drinking water
Material
Shape
Filling Volume
Filling Llevel(mm)
Cap Type
PET / PC Bottle
Square or Round Bottle
3 - 5 Gallon
Distance from bottle neck According request
Normal Cap
Adjustable specifications of the bottle type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.

If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature: 10~40℃ Humidity: No dew
User Electrical Supply Specification
Voltage: 380V±5% 3phase Frequency: 50HZ±1%/60HZ±1%

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

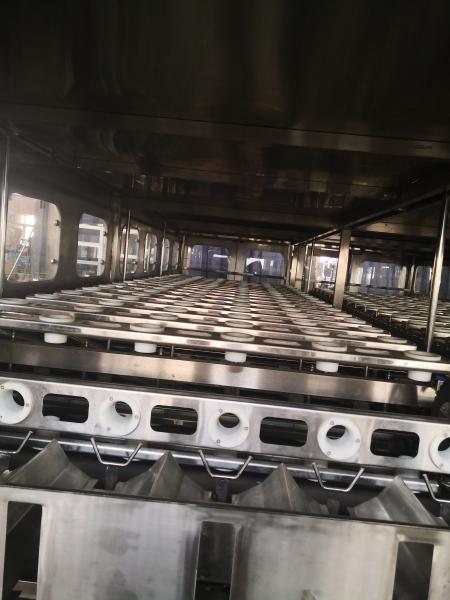

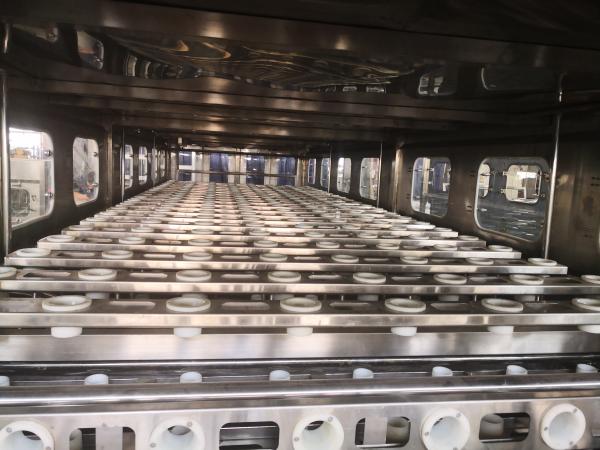

Model: IBW-8/16

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

  • Washing capacity: 1200 bottles per hour

  • Washing station: 8pcs

  • Washing stops: 16pcs

  • Each washing stops washing time: 18 seconnds

  • Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

  • Washing pump 4pcs fixed with each water tank.

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

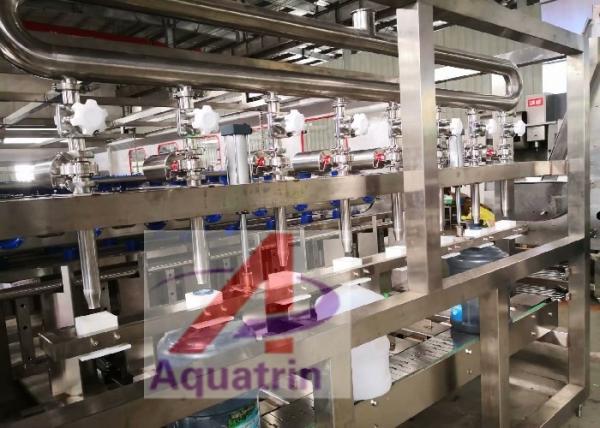

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

  • Filling Nozzle: 8pcs SUS304

  • Filling Capacity: 1200 bottle per hour

  • Suitable to bottle dimension: 3,5,6 gallon bottle

  • Drive motor power 2.2kw 1pc

  • Dimension: 1800×1200×2500mm

  • Weight: 600kg

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

No 1. Cap Decapper

Model: DP-2

Function: to remove the caps that leave the 5gallon bottle that after used Technical Parameter

  • Decapping heads: 2pcs

  • Decapping Capacity: max 1200 bottle per hour

  • Machine size: 800×500×1750mm Machine

  • Weight: 150Kg

  • Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Outside Brush machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Model: SL-30E 5 gallon labeling machine Automatic Sleeve Labeling Inserting Machine:

Model SL-30E
Labeling Speed ( capacity) Max1,600 bottle per hour
Suitable to Bottle Diameter 3,5,6gallon bottle
Suitable to Bottle Height (mm) Max. 450
Suitable to bottle diameter(mm) Max.270
Suitable to Label length(mm) 35~100mm
Label thickness 0.035~0.08mm
Paper pipe interior diameter 3~10mm adjustable
Power 2.2kw
Machine Dimension 1500(L)* 950(W) * 2000(H) mm
Weight 350kgs

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

We provide Free bottle design

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

we provide free factory layout

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Our customers

19 Litre 20 Liter 20L Bucket Bottle 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine

Product Paramenters
Model
QGF-100
QGF-240
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Filling heads
1
2
2
3
4
6
12
Volume(Gallon)
3&5
3&5
3&5
3&5
3&5
3&5
3&5
Barrel size(mm)
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
φ270*490
Capacity(b/h)
100
240
300
450
600
900
1200
Gas pressure(Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.6
0.6
0.6
Gas consumption(m³/min)
0.37
0.37
0.6
0.8
1
1.5
1.8
Motor power(kw)
1.38
1.75
3.8
3.8
7.5
9.8
13.5
Weight(kg)
680
800
1500
2100
3000
3500
4500
