Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Filling range :
3-5 Gallon
Usage :
Beverage Filling Packaging
Processing Types :
Automatic Bottle Filling Sealing Machine
Material :
Stainless Steel 304/316
Filling Accuracy :
99%
Product name :
Promotional Top Quality 5 Gallon Bottling Water Filling Machine
Description
5 Gallon Bottling Water Filling Machine.
This equipment is mainly composed of five gallons of automatic adjustment available outside the pull out cover machine, rotary brush barrels machines, automatic bucket machine, washing machine, normal pressure filling machine, cover, cover, cover, capping machine, intelligent steam heat shrinkable machine, on-line inspection, straight-line pail bagging machine, palletizing machine set, such as by conveying system connected into a continuous operation (flow) of the whole.


Product Description:
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine


Main technical specifications:

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 5 6
Volume(L) 18.9 18.9 18.9 18.9 18.9
Capacity(b/h) 100 300 450 600 900
Gas consumption (m3/min) 0.37 0.6 0.8 1 1.5
Moto power (kw) 1.38 3.8 5.6 7.5 9.75
Weight(kg) 680 1500 2100 3000 3500
Size(W*L*H)(m) 0.5*4.0*1.5 0.9*4.0*1.5 1.3*4.0*1.5 1.8*4.0*1.5 2.4*4.0*1.5
Pull out cover machine.
Cap-pulling machine can be used alone, or online layout.Realize pipeline operations.The cap pulling head is mainly composed of cap pulling claw, cylinder and other components. The cap pulling head can be adjusted up and down, and the cap pulling claw can be fine-tuned. It does not hurt the bottle mouth and has strong applicability to different bottle mouths.The host machine is controlled by PLC. When the bottle runs to the cap-pulling position, the cap-pulling head drops, the cap-pulling claw grasps the edge of the bucket mouth cover, and the bucket is lifted and the lid is pulled out.

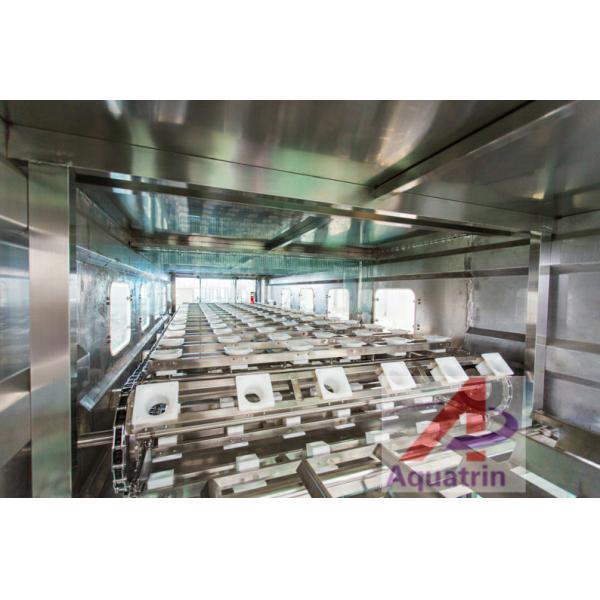

Washing Part.
When the power is connected, the PLC power starts to work, control the contactor to pull, so that the disinfectant pump starts to work, then output the signal PLC, so that the washing conveying motor and the filling conveying chain motor work, then the bucket washing mechanism makes the barrel body step by step into each process to start washing, the washing time can be programmed by the PLC controller.After rinsing, the drum falls to the pail rack.
7.5kw PLC 5 Gallon Water Filling Machine PET Bottle Rinsing Nozzles 600BPH

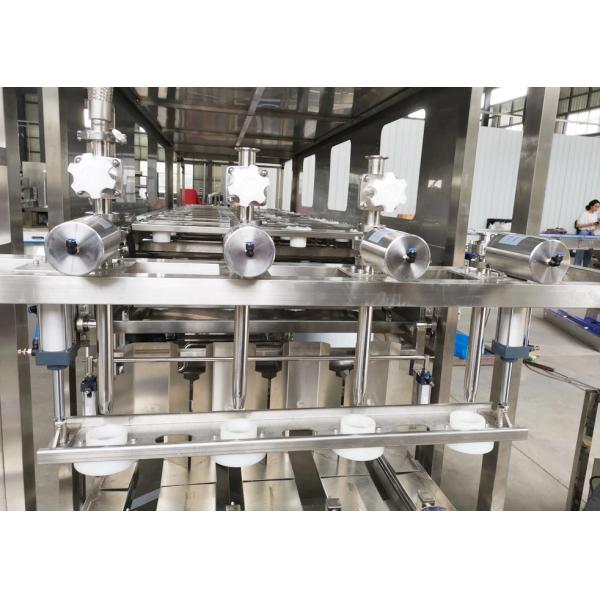

Filling Part.
The filling head adopted by this equipment, when the bucket is sent to the filling position, it will automatically drop the
filling head under the control of PLC to fill the bucket.When filled, the filling valve returns and the bucket moves forward.After the cap manager is capped, he slips to the place where he hangs the cap and hangs the cap on the barrel.
7.5kw PLC 5 Gallon Water Filling Machine PET Bottle Rinsing Nozzles 600BPH
Capping Part.
The gland is completed by the gland cylinder.When the bucket is close to the gland position, the detector detects and sends a signal, the gland cylinder moves instantaneously, and the gland is completed.With this form of capping, good effect, simple structure.
7.5kw PLC 5 Gallon Water Filling Machine PET Bottle Rinsing Nozzles 600BPH

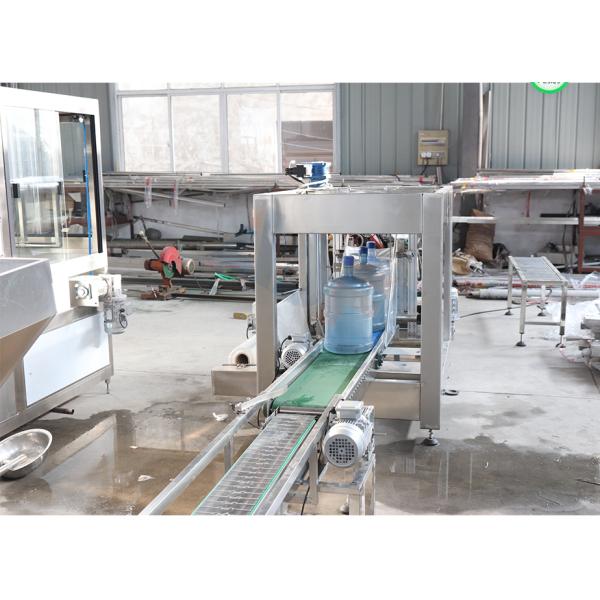

Barrel bagging machine.
The stopper cylinder falls and the conveyor chain sends a bottle under the lifting mechanism while the stopper cylinder rises to stop the rear cylinder from moving forward.Then the lifting mechanism goes down and lifts the bottle, and the staff sets the bag out of the bottle. The automatic time is flexible and adjustable.The lifting mechanism drops the bottle and the conveyor chain is sent out, at which point a procedure is completed.Repeat.
7.5kw PLC 5 Gallon Water Filling Machine PET Bottle Rinsing Nozzles 600BPH
