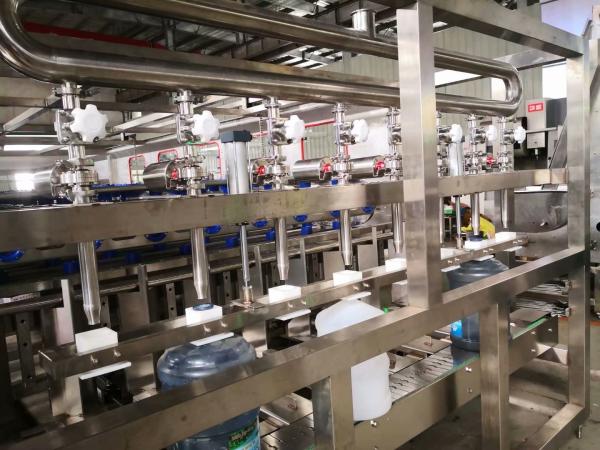

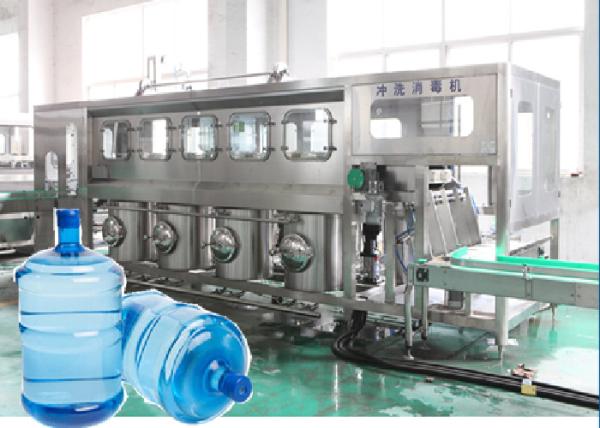

200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper
200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper
200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper
200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Name :
5gallon filling machine
Warranty: :
2 years
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maint
Packaging Type: :
Bottles, Barrel
Machinery Capacity: :
500BPH, 100BPH, 200BPH
Core Components: :
Motor, Pressure vessel, Pump, PLC
Description
Complete Line Equipment
A complete water line solution from Comark Machine leverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.
Technical Parameters
Model
QF-150
QF-300
QF-450
QF-600
QF-900
QF-1200
Filling heads
1
2
3
4
8
12
Volume(L)
18.9
18.9
18.9
18.9
18.9
18.9
Barrel size(mm)
270*490
270*490
270*490
270*490
270*490
270*490
Capacity(B/H)
100-150
200-300
350-450
600
900
1200
Gas pressure(mpa)
0.4
0.4-0.6
0.6
0.6
0.6
0.6
Gas consumption
(m3/min)
0.6
0.6
0.6
1.5
2.2
3
Motor power(Kw)
3.8
3.8
4.8
8.5
8.5
8.5
Rated Voltage
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
Outline dimension(mm)
3205*800*1800
3550*800*1800
3550*1200*1800
3650*1500*1800
2200*1860*2700
2560*2350*2750
Weight(kg)
2500
2800
4000
5500
7500
9500

1- Water treatment system
source water tank -- water pump -- silica sand filter-- active carbon filter -- sodium-- ion exchanger -- precision filter
-- reverseosmosis system -- uv sterilizer -- Ozone sterilizer -- pure water tank Used for pure water, mineral water and other bottled water,water for food and beverage production.

2- Decapping machine
BG-300 model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. 304 stainless machine frame and machine body.

3- Automatic barrel outer brushing machine
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. Water pump: with 304 stainless steel pump
4. No bottles, no washing
5. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

4- Barrel loading part
1. It is controlled by PLC. The sensors feedback the signals to PLC. Under the condition of wrong-positioned bottles, it will stop automatically. Then it will run again when the bottles in the right positioning.
2. the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles go in to the filling machine automatically.
3. The bottle feeding process will not damage the bottle edge at all.

5- Steam Shinking and Labeling Machine

It is used to sleeve the shrink labels automatically, and can save the labor and improve the production efficiency

6- Automatic Film Wrapping Machine

It is used for bagging the 5 gallon or 20L bottled water automatically, It can save 1-2 labors to reduce the labor cost
