Rotary Plastic Bottled Filling Machine Photoelectric Detection For Drinking Water

Specifications

Brand Name :

Aquatrin

Model Number :

CGF

Certification :

CE ISO

Place of Origin :

China

MOQ :

1unit

Price :

USD15000-60000 1Set

Payment Terms :

T/T

Supply Ability :

10units per month

Delivery Time :

45days

Packaging Details :

wooden package

name :

automatic water filling machine

filling heads :

12-50

material :

stainless steel304

bottle material :

PET

filling volume :

250-2000ML

Description

Water Filling Bottling Line Plastic Bottling Machine

Product Application:

This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitablefor PET bottled juice and tea drink which can resistant high temperature.It also can be used for mineral water,pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool.The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

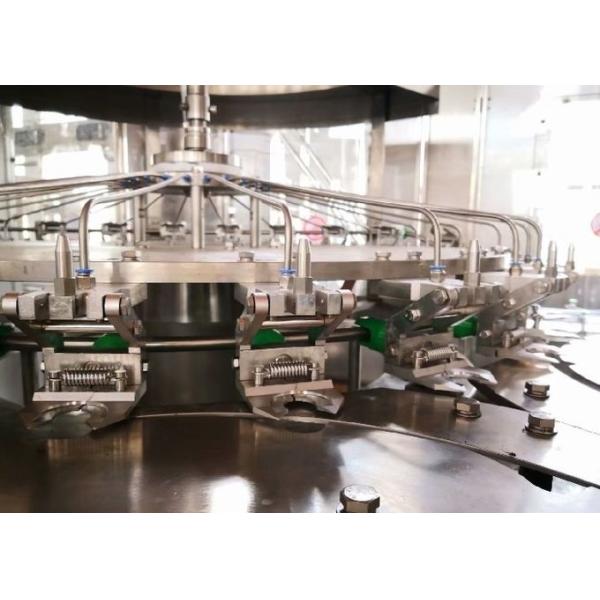

Washing Heads.

* Adopting the direct connection technology between the air duct and the bottle feeding wheel, the bottle feeding screw and conveyor chain are eliminated, and the bottle shape is simple and easy to change. * Bottle transmission adopts the bottleneck clamping technology throughout the whole process. Changing the bottle shape does not need to adjust the height of the equipment. It only needs to replace the arc guide plate, dial wheel and other nylon parts related to the bottle diameter. * The high-speed line adopts bottle clamp transmission technology, the bottle shape changes more freely, and the internal working surface of the unit is more concise.

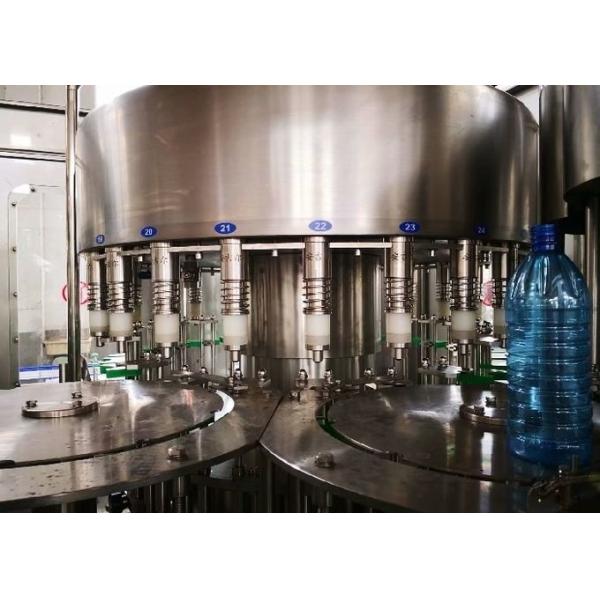

Filling Heads.

* The three-in-one unit completes the three processes of bottle washing, filling and capping at one time, with little bottle wear, accurate and stable transmission, and convenient bottle type replacement. * The specially designed all-stainless steel bottle washer bottle clamp is sturdy and durable, and does not touch the threaded part of the bottle mouth to avoid secondary pollution of the bottle mouth. * High-speed and large-flow gravity filling valve, fast filling speed, accurate liquid level without liquid loss.

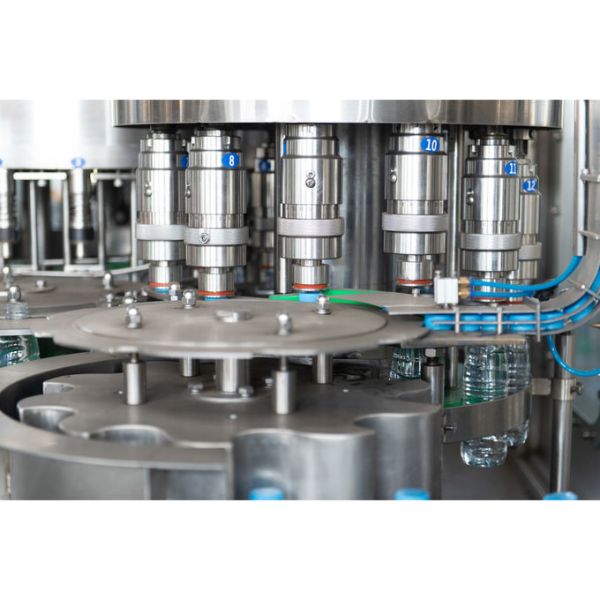

Capping Heads.

* All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which meet the national food hygiene standards. * The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle conveyor chain is not required to change the bottle shape.

Want to know more message , contact us with out hesitate ! Inquiry us now !

Model	CGF12-12-4	CGF16-16-5	CGF24-24-6	CGF32-32-8	CGF40-40-10
Capacity 0.5L/bottle/h	3000-4000	6000-8000	8000-12000	12000-15000	18000-20000
Suitable bottle	PET Circular or square
Bottle diameter	50-115 mm
Bottle height	160-320 mm
Compressed air pressure	0.3-0.7Mpa
Washing mdeium	Aseptic water
Washing water's pressure	>0.06Mpa
Total power	4.4	4.4	4.4	5.2	6.2
Weight	3200	4000	4500	6500	7500
