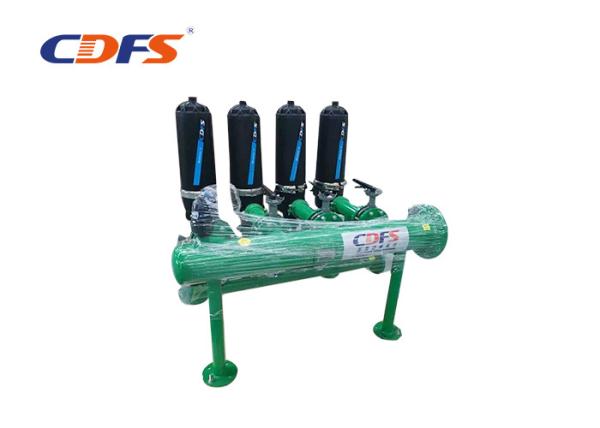

Disc Automatic Backwash Filter For Agricultural Irrigation System
Disc Automatic Backwash Filter For Agricultural Irrigation System
Specifications
Brand Name :
CDFS
Certification :
IS9001,CE
Place of Origin :
China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
2600SETS/YEAR
Delivery Time :
10-15days
Packaging Details :
Wooden case
Model Number :
DLLF
product name :
Automatic Backwash Filter
Material :
plastic
Capacity :
20-2000m3/h
Application :
Agricultural Irrigation System
Color :
Green/blue
Pressure :
2-10bar
Precision :
130microns
Temperature :
85℃
Control optional :
differential pressure/time/manual/PLC
Raw water :
River water/Underground water
Description

Disc Automatic Backwash Filter For Agricultural Irrigation System

Automatic Backwash Filter Features:

1. Less pressure loss, less backwashing: filtration pressure loss: ≤0.05MPa, backwashing displacement ≤0.5% filtered water
2. High degree of automation: The self-cleaning filter should be backwashed by its own water pressure and filtered water to automatically discharge the dirt, and it is still in the normal water supply filtration state during the backwashing process.
3. Various control methods: cleaning control mode: differential pressure control, timing automatic control and manual control. The control system not only sets differential pressure cleaning, but also has timing cleaning function (adjustable flushing interval) and continuous cleaning function, control system. It can meet long-term continuous work, and can automatically clean the filter and clean it thoroughly.
Automatic Backwash Filter Description
Used as the second level filtration to effectively remove fibrous impurities,having a high ability to catchsoft impurities.


Automatic Backwash Filter Specification

  • Application:Agricultural Irrigation System
  • Working pressure: 2-10 bar
  • Working temperature:<85℃
  • Power:220V/50Hz
  • Flow: 50m3/h
  • Water in/out: 2 inch
  • Housing color:green/blue


Automatic Backwash Filter structure

Parameters

Items

Materials

Disc filter modules

Nylon

Pipeline

Carbon steel/HDPE /Stainless steel

Pressure gage

Stainless steel

Auto backwash valve

Nylon/stainless steel

Electromagnetic valve

Brass/nylon

Air valve

Plastic

Controller cover

Plastic/Stainless steel


Certifications

FAQ


Q: Where is your factory?
A:Changsha city, Hunan province, China

Q:Can you accept OEM?
A:Yes.We could do OEM for you.

Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent

Q: How about the delivery time?
A: Usually 15-25 days after prepayment is confirmed.
