Specifications
Brand Name :
XINGTE
Model Number :
XT-818
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Name :
Speaker Coil Winding Machine with lead wire control function
Application :
1511,1206,1506,1609 Speaker Voice Coil
Function :
Speaker Voice Coil winding,air coil winding,special-shape coil winding
Weight :
600KGS
Dimensions :
880(W)×1900(L)×1800(H)mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
220v, 50/60HZ
Warranty :
12 Monthes
speed :
1000pcs/H
power :
3KW
Description

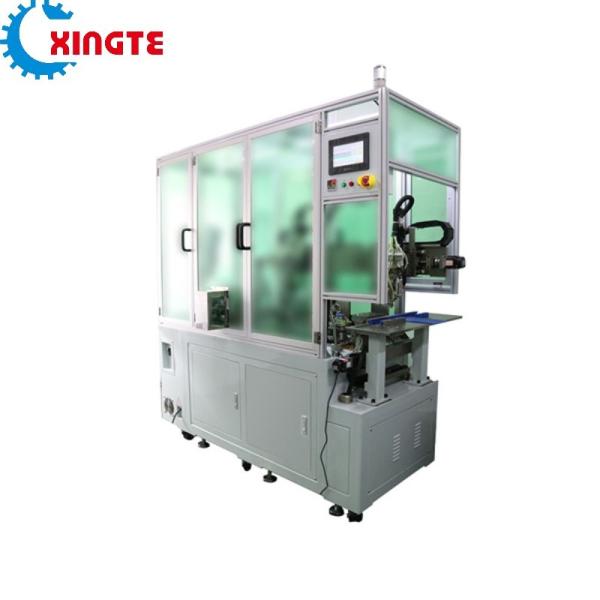

XT-818 Fully Automatic Speaker Coil Winding Machine with lead wire control For 1511,1206,1506,1609 Speaker Voice Coil1511,1206,1506,1609 Speaker Coil Winding Machine

Product Features

This automatic winding machine adopts an advanced high-precision motion controller, which can perform high-precision linear positioning and arc interpolation positioning. long life, programmable, and other features to ensure high efficiency and high precision of the product, and deformation Small, which improves product quality; special coils can be designed and wound according to customer needs.

Equipment overview

This machine is a fully automatic high-precision winding machine specially designed by our company to provide controllable coil leads for fully automatic production lines. it can control the coil leads from any angle and any position. It adopts automatic winding, automatic wire feeding, automatic stretching, automatic flipping, automatic lead wire bending, automatic placement of fixtures, and automatic collection of waste materials, greatly improving the efficiency of fully automatic production.


Application areas

1511, 1206, 1506 and 1609 speaker voice coils, air core coils, and special-shaped coils are suitable for fully automatic assembly and supporting production lines.

Product parameters

Model

 XT-818 Spindles 18 spindles
Machine dimension: 880(W)×1900(L)×1800(H)mm winding speed ≤4000rpm

G. W:

 600KG wire size 0.018-0.2(mm)
Power supply: AC220V,50/60Hz coil stack height ≤8mm

Power:

 3KW coil outer diameter ≤30mm(can customize)

Air pressure:

 0.4Mpa～0.7Mpa lead wire position from any angle

spindle direction of rotation

 Clockwise/counterclockwise lead wire length 40-80mm(Clockwise/counterclockwise)

Controller

 touch screen Wire cutting mode Custom blade cutting

Number of spindles

 18 spindles tensioner servo tensioner

Production capacity

300-550pcs /H

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability


XINGTE PRODUCTION LINE

1, Motor stator, rotor, and other related coil winding machine

2, Transformer-related product coil winding machine

3, voice coil-related product winding machine

4, inductor coil winding machine and

5, customized fully automatic line for the motor, speaker, transformer production line



Our factory
1511,1206,1506,1609 Speaker Coil Winding Machine

Machines
1511,1206,1506,1609 Speaker Coil Winding Machine



Air Coils finished product
1511,1206,1506,1609 Speaker Coil Winding Machine


Delivery
1511,1206,1506,1609 Speaker Coil Winding Machine

Our partners

1511,1206,1506,1609 Speaker Coil Winding Machine
