This needle-winding machine has two working stations. Machine movement is pre-set in the touch screen. All the winding data can be shown on the touch screen during the machine running. During running, the machine will alarm if something goes wrong.

Auto BLDC Motor Stator Needle Winding Machine,Coil Winding Machine For Electric Motor

Main feature

Adopt Imported servo motor drives the winding action.

Two/four workstations are available.

10-inch Intuitive PLC human-computer interaction controller for easy operation.50 programs can be stored for fast program switching.

automatic loading, automatic wire winding, precision wire arrangement, automatic slot change, automatic wire passing, Automatic pin wrapping, automatic wire cutting, and automatic unloading.

It adopts precision ball screw + precision linear guide rail, for orderly, tight, and consistent winding;

optional Electronic tensioner.

Model number: XT-02D

Wire Diameter : Ø0.1 ~ Ø1.2mm

Stator Outer diameter:Max 110mm

Stator Inner diameter:Min 15mm

Stator stack thickness:150mm

No. of Stator Slots 6-18pcs

Power: 6KW

Power supply: AC380V,50/60Hz

Air pressure: > 0.6Mpa

Winding speed: 1000Rpm

Machine dimension: 1710*680*1990mm

G. W: 600KG

Our machine advantage

• Flexibility (internal and external rotor)
• Multi-parts winding at the same time
• Freely programmable
• Wire layering
• Freely programmable contacting/wire termination (teach process)
• High filling factors despite required space for needle
• Large wire diameter range
• Freely selectable wire connections even on the lower side of the stator
• Low tooling costs

Applications

stepper motor motors, brushless motors, responsive motors and other winding/vehicle motors, military, industrial control, and IOT/Al motor stator motors.

• Pump drives
• Fans
• Power steering, servo motors
• various brushless motors
• Professional food processors
• Professional power tools
• Coolant pumps
• Heating pumps
• Vacuum pumps
• Oil pumps
• Roller shutter drives
• Wheelchair drives
• Dental drill

The stator is stationary during winding. All Nozzle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).

It is possible to wind:

• Inner straight slot stators
• Inner skewed slot stators
• Outer stators straight and skewed slot

Product parameters

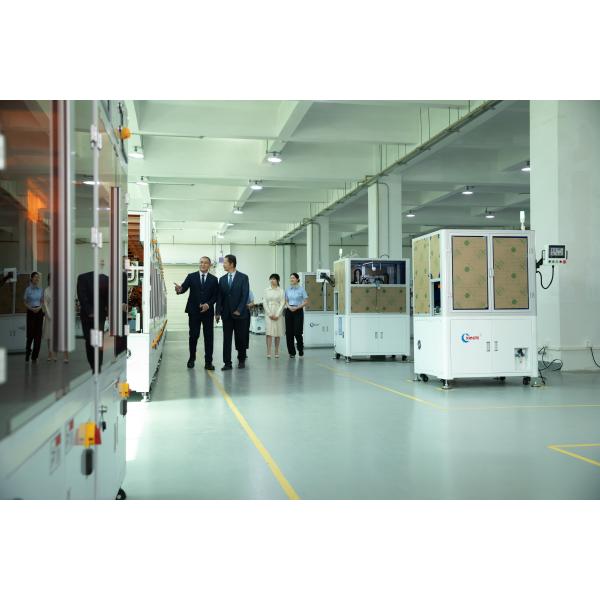

Our factory
