CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
Specifications
Brand Name :
CHENXIN
Model Number :
CX-801
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
1/Set
Price :
Fob Shenzhen
Payment Terms :
T/T
Supply Ability :
150 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Export wooden case
usage :
Cut & Strip & Crimp
Applicable cable :
AWG32-AWG18
Stripping length :
1-10mm
Cut precision :
±(0.2+0.02*L) mm, L=cut length
Capacity :
3800-5000pcs/hour
Crimping force :
2.0T
Applicators :
30mm or 40mm strokes for optional
Detection :
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Description

CX-02A Full Automatic Single Head Crimping Terminal Wire Crimping Machine For Wire Harness

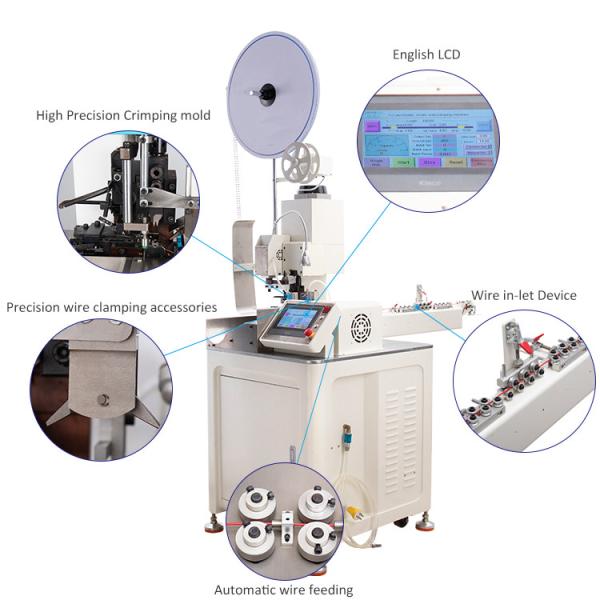

Features

  • English LCD Screen: Full automatic LCD screen,easy operation,convenient adjustment(English-Chinese language)
  • Applicator/mold: Quick and easy for applicator change. Precision wire cutting stripping and crimping,high efficiency,stable performance.
  • Optional Device: Optional of wire prefeeder (motorized type and conveyor(for long wires)

Technical Parameter

Model CX-22A CX-22A-1
Applicable wire range AWG32-AWG18 AWG32-AWG18
Stripping length 1-10mm 1-10mm
Cut precision ±(0.2+0.02*L) mm, L=cut length ±(0.2+0.02*L) mm, L=cut length
Cutting length 8-9999mm 20-9999mm(With twist)
Capacity 3800-5000pcs/hour 3800-5000pcs/hour
Twisting function N/A Yes
Twisting length 3-12mm
Crimping force 2.0T 2.0T
Applicators 30mm or 40mm strokes for optional 30mm or 40mm strokes for optional
Air pressure 0.5-0.7Mpa 0.5-0.7Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension 650*700*1500mm 650*700*1500mm
Weight 240Kg 240Kg
Power supply 220V/110V/50HZ/60HZ

220V/110V/50HZ/60HZ

CX-02A Full Automatic Single Head Terminal Wire Crimping Machine For HarnessCX-02A Full Automatic Single Head Terminal Wire Crimping Machine For Harness
