3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
Specifications
Brand Name :
CHENXIN
Model Number :
CX-003
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
2/Set
Price :
FOB SHENZHEN
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
10-15 working days
Packaging Details :
wooden case/boxes
Voltage :
220V 50Hz
Stroke :
30
Punching force :
3T
Motor power :
1.11kw/h
Average power :
0.65kw/h
Dimension(mm) :
240*270*700
Weight(kg) :
66
Description

CX-003 Semi-Automatic 3T Super Mute OPT Mold Terminal Crimping Machine

Description

Super mute terminal crimping machines are widely used, suitable for terminal processing in electronics, electrical appliances, toys, automobiles, motorcycles, and other industries.

Technical parameter

Model CX-001 CX-002 CX-003 CX-004 CX-005
Voltage 220V 50Hz 220V 50Hz 220V 50Hz 220V 50Hz 220V 50Hz
Stroke 30 30 30 30 30
Punching force 1,500 2,000 3,000 4,000 6,000
Motor power 0.55kw/h 0.75kw/h 1.11kw/h 1.5kw/h 1.8kw/h
Average power 0.35kw/h 0.45kw/h 0.65kw/h 0.85kw/h 0.85kw/h
Dimension(mm) 215*230*600 215*245*640 240*270*700 260*305*740 340*320*800
Weight(kg) 38 47 66 95 110

Features:

1, Quiet fast

2, Energy saving

3, General mold

4, One-piece casting

5, Wide range of applications: suitable for DC terminal, AC terminal, single-terminal, continuous terminals.

6, High-end frequency conversion technology: advanced frequency conversion technology, quieter and more energy-saving.

7, Changing molds is simpler: automatic crimping of terminals at specified intervals

8, Speed and strength adjustment: the program can set the crimping speed and strength

9, Automatic continuous crimping function

10, On-screen counting function

3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H

 Microcomputer control, continuous crimping and speed adjustment can be realized by pressing buttons.
 Cassette molds, high-precision molds, detachable and replaceable horizontal molds, straight molds, and single terminal molds.
 Metal hose LED light, the light is soft and not dazzling.  The position of the metal hose can be adjusted at will.
 The machine body is made of cast iron in one piece. The surface of the paint is smooth and flat.

3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H

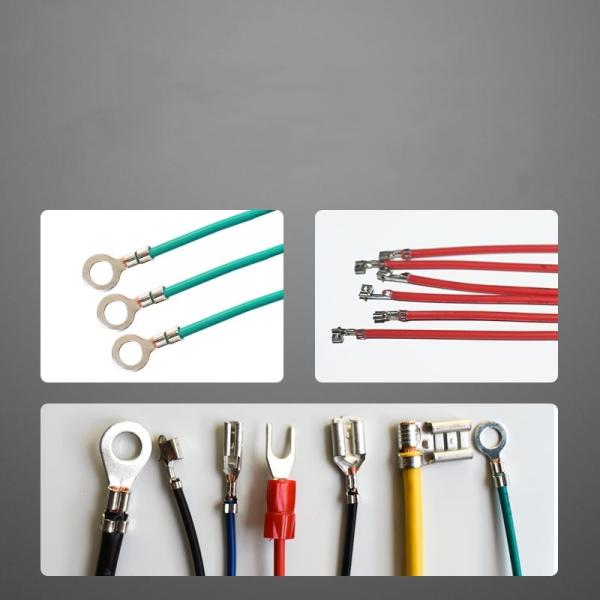

One machine can crimp a variety of terminals, suitable for terminal processing in electronics, electrical appliances, toys, automobiles, motorcycles, and other industries. Suitable for DC terminals, AC terminals, single-grain terminals, continuous terminals, computer terminals, etc.

3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H

3T DC Terminal Semi Automatic Crimping Machine 0.65kw/H
