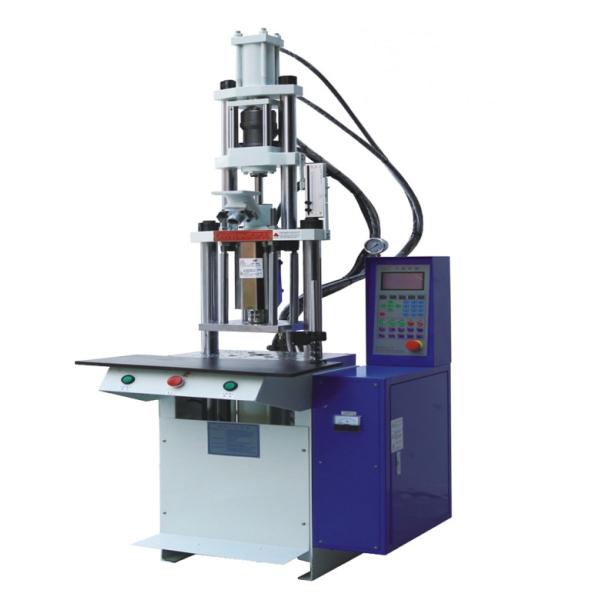

CX-150 Vertical Plastic Injection Molding Machine

CX-150 vertical injection molding machine features---standard model, vertical direct pressure clamping, vertical injection

1. Vertical, direct pressure clamping, vertical injection, small footprint, smart and precise, suitable for injection molding of small and medium-sized embedded parts. Double-cylinder injection system, high injection pressure and fast shooting speed. The lower type is fixed and the upper type is active. For the good positioning of the inserts, and the finished product ejection device.
2. Uniform stress distribution. The low-pressure protection is accurate, and the whole stroke is smooth and excellent.
3. Expandable program design, connect with automatic embed and take-out equipment, it will operate automatically. According to the characteristics and performance requirements of the embedded parts, the purpose of small input and large output can be achieved.
4 Electric control and hydraulic pressure adopt famous brand parts, which are quiet, precise and durable; automatic fault display, easy and easy maintenance; optional servo energy-saving motor.
5. In-line screw injection device. Multi-stage temperature control, multi-stage injection pressure, injection speed, back pressure stepless adjustment, suitable for precision plastic parts molding.
6. Two (three) temperature control, shooting speed, back pressure, stepless adjustment of screw speed, suitable for molding various precision engineering plastic parts.
7 Low-pressure mold opening device to ensure mold safety. It has a hydraulic ejection device for the finished product.
8. The injection base can be raised and lowered automatically, and has an automatic cleaning device, which is convenient for the replacement of molds and raw materials.
9. Single slide or dual-mode alternating slide can be added to increase workability and efficiency.
