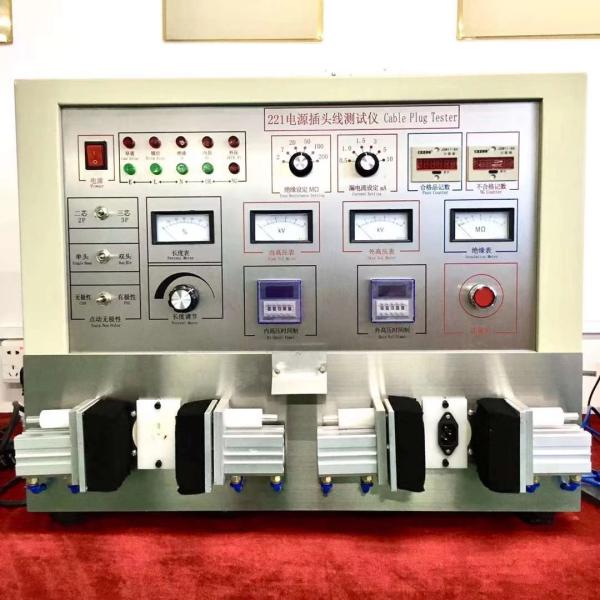

DC500V Double End Loop Inductive Power Cord Tester
DC500V Double End Loop Inductive Power Cord Tester
DC500V Double End Loop Inductive Power Cord Tester
DC500V Double End Loop Inductive Power Cord Tester
DC500V Double End Loop Inductive Power Cord Tester
DC500V Double End Loop Inductive Power Cord Tester
Specifications
Brand Name :
CX
Model Number :
CX-221
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
1/set
Price :
FOB Shenzhen
Payment Terms :
T/T
Supply Ability :
500/sets per month
Delivery Time :
10-15 working days
Packaging Details :
woodencase
Product name :
Power Cord Tester
Color :
Black/White
Warranty :
1 year
Test voltage :
DC500V
Description

Power Cord Plug Double End Tester Testing Machine

TECHNICAL PARAMETERS:

1 through the panel function setting switch can detect double, single head power cord, polarity, conduction, insulation. Open circuit, the internal pressure, external high pressure and other projects tested.

2 the internal pressure leakage current setting value: 0.5, 1.0,2.0,3.0,5.0,10mA arbitrarily set.

3 inside and outside high pressure: 0-5KV continuously adjustable, external pressure leakage current setting: 1.5Ma

4 insulation value setting: 2, 7, 20, 50, 100, 200MΩ

5 insulation test voltage DC: 500V.

6 lead resistance 1mΩ-500mΩ. Current 1-30A

7 the test items: conduction, length, polarity, open circuit, short circuit, insulation, high pressure, and other projects.

8 the test sequence: polarity, conduction, open circuit, short circuit, insulation, internal high pressure, external high pressure.

9 test methods: loop / inductive. (Inductive test wire length equal to or longer than 1-meter error is less than or equal to 10PF)

10 single-headed polarity test Click on the light signal instructions, dislocation alarm, sound and light tips, press the reset button to stop.

11 bad high pressure sound and light instructions need to press the reset button to stop.

12 failed, audible and visual alarm, manual reset.

13 automatic counting of qualified products, automatic mold ejection

Product Name Power Cord Tester
value setting 2, 7, 20, 50, 100, 200MΩ
Test voltage DC: 500V
lead resistance 1mΩ-500mΩ. Current 1-30A
high pressure 0-5KV continuously adjustable
test methods loop / inductive
certificate ISO90001

DC500V Double End Loop Inductive Power Cord TesterDC500V Double End Loop Inductive Power Cord Tester
