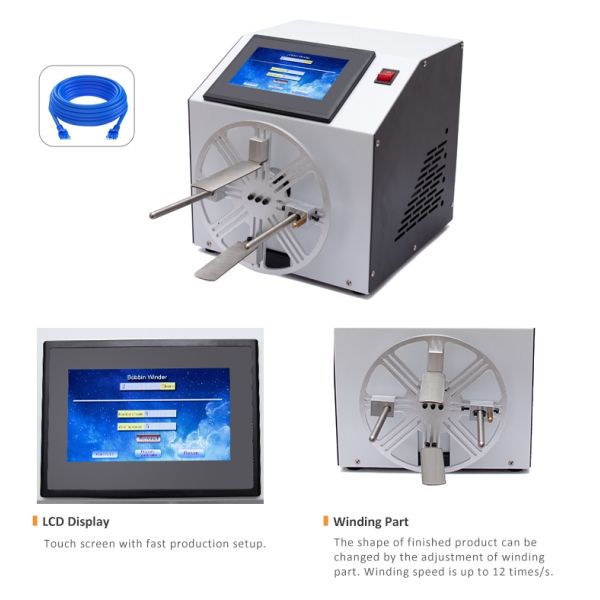

6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
6N Adjustable Automatic Coil Winding Machine 12 Circles / Sec
Specifications
Brand Name :
CX
Model Number :
CX-SW01
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
1/SET
Price :
FOB Shenzhen
Payment Terms :
T/T
Supply Ability :
500/sets per month
Delivery Time :
10-15 working days
Packaging Details :
box
Finished wire diameter :
φ5-30mm
Cable tie :
with iron core
tying shape :
circle, 8 shape
Winding speed :
1-12 circles/sec (adjustable)
Winding inner diameter :
50-200mm
Numbers of turn :
adjustable
Winding force :
6N
Voltage&Frequency :
110/220V 50/60Hz
Power :
200W
Description

CX-SW01 Automatic Adjustable Wire Coil Winding Machine​

Technical Parameter:

Winding speed 1-12 circles/sec (adjustable)
Winding inner diameter 50-200mm
Numbers of turn adjustable
Winding force 6N
Voltage&Frequency 110/220V 50/60Hz
Power 200W
Dimension L250mm*W300mm*H330mm
Weight 18kg

Description: Automatic cable twist tie machine be provided function with coil wind, auto twist tie finished in one end. Our automatic coil winding machine can twist tie many kinds of cable according to every customer's requirements.
Operation Steps:
1. placement of wire: place the plug end of the wire into the wire reel locating block and press starting switch to enable thewire to be processed in each link by attaching to the winding rod until the wire binding is completed
2. adjustment of the wire length: loose the adjusting holder and adjust the wire to the desired length to the left and right, and then tighten the screw
3. Adjustment of wire allowance at the other end: loose the air cylinder base to enable the cylinder to stretch out, and then move the air cylinder base to get the desired length of the wire at the other end

Company Profile

Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.


The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.
