Specifications
Brand Name :
CHENXIN
Model Number :
CX-SO001
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
1/Set
Price :
Fob Shenzhen
Payment Terms :
T/T
Supply Ability :
150 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Export wooden case
usage :
Crimp
Punching force :
2T-4T
Pressure of air source :
0.5~0.8MPA
Applicable cable :
RVV/3C, base on cable size
Working Voltage :
220V 50Hz
Capacity :
600~1000Pcs/H
Machine Dimensions(L*W*H) :
Machine Dimensions(L*W*H)
Weight :
160kg
Description

16a Schuko Simi Automatic Plug Insert Crimping Machines

Feature

1. Automatic feed and pressure connection can be completed once for all. Equipped with a protective unit on the pressure connection point and it is safe and convenient for operation.

2.Maintenance method is simple and fast, the ordinary work staff can also complete the equipment maintenance work.

3.Easy to operate, just put the cable in the in terminal, the machine can be crimped.

4. Processing precision is in place, the terminal crimping is firmly in place, so that the copper wire is not exposed, the copper wire is not broken, and the terminal is detached

5.Applicable terminals: BS inner frame, Australian standard three plug, Brazil three plug, Argentina three plug, South Africa first three-pin terminal, French inner frame, British standard inner frame, Israeli inner frame, inner end frame and other specifications.

6.If connector special, support customized base on the sample.

Parameter

Name Auto feeding plug crimping machine
Technical Index Tech-Parameters
Punching force 2T-4T
Pressure of air source 0.5~0.8MPA
Available cable RVV/3C, base on cable size
Working Voltage 220V
Working Efficiency 600~1000Pcs/H
Machine Dimensions(L*W*H) 0.85m*0.5mm*1.3mm
Machine Weight

160 Kg

16a Schuko Simi Automatic Plug Insert Crimping Machines

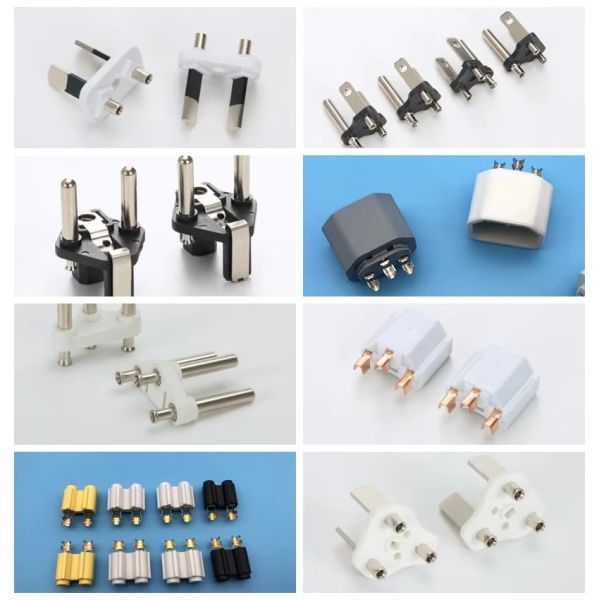

Applicable Plug Insert

16a Schuko Simi Automatic Plug Insert Crimping Machines

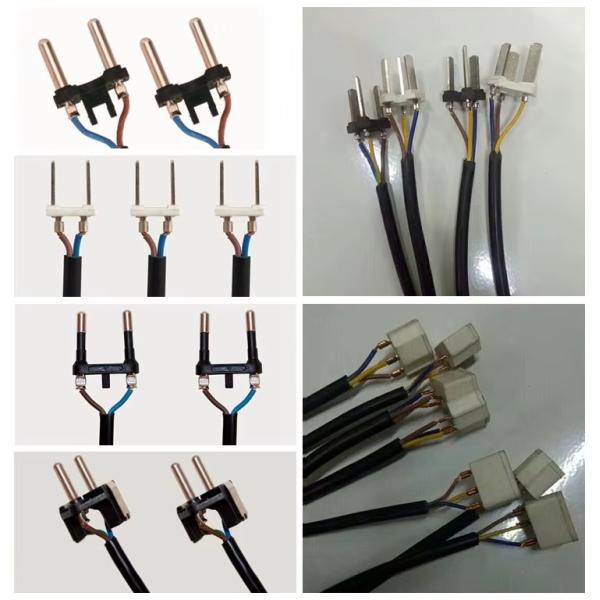

Finished Product

16a Schuko Simi Automatic Plug Insert Crimping Machines16a Schuko Simi Automatic Plug Insert Crimping Machines
